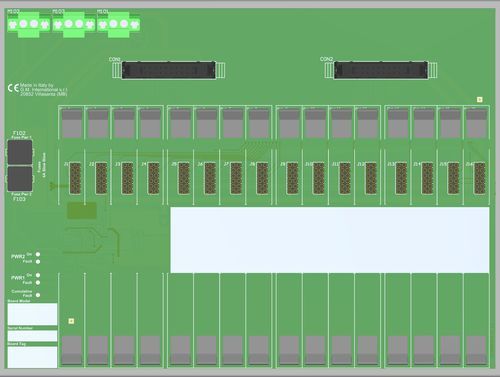

Plug-in terminal block TBE-D5016-MOD-001

relaypowerplastic

16-pos Termination Board for Modicon M580 Safety BMXSDI1602 DI CardThis Termination Board with Enclosure (TBE) provides terminals for the direct connection between the I/O Card of the system and D5000 / D6000 Series modules. The Intrinsically Safe protection and signal isolation between Safe and Hazardous Area is provided by D5000 Series Associated Apparatus. The 24 Vdc Power Supply of the TBE is connected to two plug-in terminal blocks, for a redundant power supply.Modicon M580 Safety DI board interface16 positions Termination Board for up to 32 channelsLower cables installation and maintenance costsPower supplies fault monitoringMounting hardware provided for single DIN Rail mounting kitStatus: ACTIVEChannels: 16 or 32GeneralNumber of positions16Maximum number of channels32SupplyVoltage24 Vdc nom (20 to 30 Vdc), reverse polarity protected, double terminal blocks for redundant power supply, with OR diodes to mix supply voltages.Max allowed current consumption1.5 A (as total supply).Connectionby polarized plug-in disconnect screw terminal blocks to accommodate terminations up to 2.5 mm², screw fix.Protection fuse4 A time lag.Fault detectionTypeThe on-board diagnostic monitors both power supplies integrity and the module cumulative fault. Any malfunction is reported by deactivating a solid-state relay and activating the corresponding LEDs.Alarm is issued if1) Power supply 1 or 2 < 17 Vdc or 2) Power supply 1 or 2 > 33 Vdc or 3) Module cumulative fault ON.Alarm is removed if1) 20 Vdc < Power supply 1 and 2 < 30 Vdc and 2) No module cumulative fault.Connectionby polarized plug-in disconnect screw terminal blocks to accommodate terminations up to 2.5 mm², screw fix.Output rating100 mA 35 V (≤ 1 V voltage drop).I/O Card InterfaceConnection2 x 20-poles receptacle connector (require female mating connector).CableTBD.Environmental conditionsOperating temperaturetemperature limits –40 to +70 °C.Max altitude2000 m a.s.l.Storage temperaturetemperature limits –45 to +80 °C.MountingTypeHardware included for mounting on single DIN-rail 35 mm.Weightabout 1 kg, excluding modules with plastic clips.Locationinstallation in Safe Area.DimensionsWidth 240 mm, Depth 180 mm, Height 154 mm.Number of positions: 16Maximum number of channels: 32Voltage: 24 Vdc nom (20 to 30 Vdc), reverse polarity protected, double terminal blocks for redundant power supply, with OR diodes to mix supply voltages.Max allowed current consumption: 1.5 A (as total supply).Connection: by polarized plug-in disconnect screw terminal blocks to accommodate terminations up to 2.5 mm², screw fix.Protection fuse: 4 A time lag.Fault detection: On-board diagnostic monitors both power supplies integrity and the module cumulative fault. Any malfunction is reported by deactivating a solid-state relay and activating the corresponding LEDs.Alarm conditions: Power supply 1 or 2 < 17 Vdc or > 33 Vdc, or module cumulative fault ON. Alarm is removed if 20 Vdc < Power supply 1 and 2 < 30 Vdc and no module cumulative fault.Output rating: 100 mA 35 V (≤ 1 V voltage drop).I/O Card Interface: 2 x 20-poles receptacle connector (require female mating connector).Operating temperature: –40 to +70 °C.Max altitude: 2000 m a.s.l.Storage temperature: –45 to +80 °C.Mounting: Hardware included for mounting on single DIN-rail 35 mm.Weight: about 1 kg, excluding modules with plastic clips.Location: installation in Safe Area.Dimensions: Width 240 mm, Depth 180 mm, Height 154 mm.
