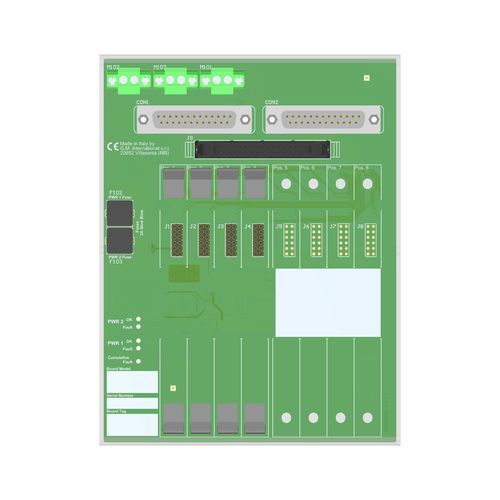

Plug-in terminal block TBE-D5004-MOD-001

relaypowerplastic

This Termination Board with Enclosure (TBE) provides terminals for the direct connection between the I/O Card of the system and D5000 / D6000 Series modules. The Intrinsically Safe protection and signal isolation between Safe and Hazardous Area is provided by D5000 Series Associated Apparatus. The 24 Vdc Power Supply of the TBE is connected to two plug-in terminal blocks, for a redundant power supply.Modicon M580 AO board interface4 positions Termination Board for up to 4 channelsConnection to external GMI HART® Mux 5700(-110)Lower cables installation and maintenance costsPower supplies fault monitoringMounting hardware provided for single DIN Rail mounting kitTechnical Specifications:Number of positions: 4Maximum number of channels: 4Supply Voltage: 24 Vdc nom (20 to 30 Vdc), reverse polarity protected, double terminal blocks for redundant power supply, with OR diodes to mix supply voltages.Max allowed current consumption: 1.5 A (as total supply)Connection (Supply): By polarized plug-in disconnect screw terminal blocks to accommodate terminations up to 2.5 mm², screw fix.Protection fuse: 2 A time lagFault detection: On-board diagnostic monitors both power supplies integrity and the module cumulative fault. Any malfunction is reported by deactivating a solid-state relay and activating the corresponding LEDs. Alarm is issued if: 1) Power supply 1 or 2 < 17 Vdc or 2) Power supply 1 or 2 > 33 Vdc or 3) Module cumulative fault ON. Alarm is removed if: 1) 20 Vdc < Power supply 1 and 2 < 30 Vdc and 2) No module cumulative fault.Output rating: 100 mA 35 V (≤ 1 V voltage drop)I/O Card Interface Connection: Two 25 poles SUB-D male connectors (require female mating connectors)I/O Card Cable: System cable BMXFCAxx0 ("xx" indicating the length). Refer to Schneider documentation for more details.Redundant logic: In redundant mode, each channel should force half current. In case of single channel fault (open circuit), the surviving one should provide full current.HART Mux Interface Connection: 1 x 34-poles receptacle connector (require female mating connector)HART Mux Cable: Flat cable CABF032Operating temperature: –40 to +70 °CMax altitude: 2000 m a.s.l.Storage temperature: –45 to +80 °CMounting type: Hardware included for mounting on single DIN-rail 35 mmWeight: About 500 g, excluding modules with plastic clipsLocation: Installation in Safe AreaDimensions: Width 140 mm, Depth 180 mm, Height 154 mm
