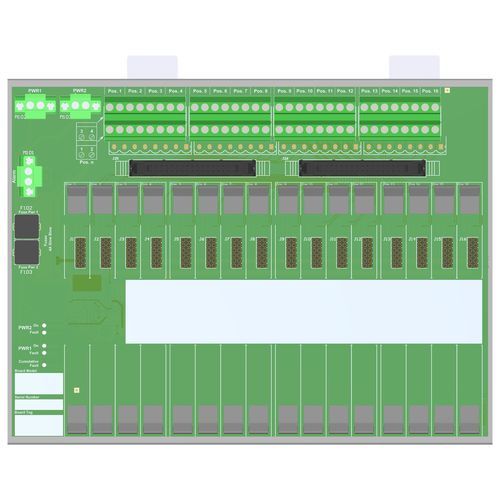

Plug-in terminal block TBE-D5016-GMI

relaypower

This Termination Board with Enclosure (TBE) provides terminals for the direct connection between the I/O Card of the system and D5000 / D6000 Series modules. The Intrinsically Safe protection and signal isolation between Safe and Hazardous Area is provided by D5000 Series Associated Apparatus. The 24 Vdc Power Supply of the TBE is connected to two plug-in terminal blocks, for a redundant power supply.Universal board interfaces with terminals16 positions Termination Board for up to 32 channelsZone 2 Installation (pending)Power supplies fault monitoringMounting hardware provided for single DIN Rail mounting kitTechnical DataGeneralNumber of positions16Maximum number of channels32SupplyVoltage24 Vdc nom (20 to 30 Vdc), reverse polarity protected, double terminal blocks for redundant power supply, with OR diodes to mix supply voltages.Max allowed current consumption1.5 A (as total supply).Connectionby polarized plug-in disconnect screw terminal blocks to accommodate terminations up to 2.5 mm², screw fix.Protection fuse4 A time lag.Fault detectionTypeThe on-board diagnostic monitors both power supplies integrity and the module cumulative fault. Any malfunction is reported by deactivating a solid-state relay and activating the corresponding LEDs. Alarm is issued if: 1) Power supply 1 or 2 < 17 Vdc or 2) Power supply 1 or 2 > 33 Vdc or 3) Module cumulative fault ON. Alarm is removed if: 1) 20 Vdc < Power supply 1 and 2 < 30 Vdc and 2) No module cumulative fault.Connectionby polarized plug-in disconnect screw terminal blocks to accommodate terminations up to 2.5 mm², screw fix.Output rating100 mA 35 V (≤ 1 V voltage drop).I/O Card InterfaceConnection32+32 screw terminal blocks to accommodate terminations up to 2.5 mm², with exact correspondence to module 1-to-4 terminals.Environmental conditionsOperating temperaturetemperature limits –40 to +70 °C.Max altitude2000 m a.s.l.Storage temperaturetemperature limits –45 to +80 °C.MountingTypeHardware included for mounting on single DIN-rail 35 mm.Weightabout 1.4 kg, excluding modules.Locationinstallation in Safe Area/Zone 2 (pending).DimensionsWidth 240 mm, Depth 180 mm, Height 154 mm.Status: ACTIVEChannels: 16 or 32Characteristics / Technical SpecificationsProduct type: Termination Board with Enclosure (TBE)Model: TBE-D5016-GMI-003Compatible with: D5000 / D6000 Series modulesNumber of positions: 16Maximum number of channels: 32Supply voltage: 24 Vdc nominal (20 to 30 Vdc)Max current consumption: 1.5 AProtection fuse: 4 A time lagOperating temperature: –40 to +70 °CStorage temperature: –45 to +80 °CMax altitude: 2000 m a.s.l.Mounting: DIN-rail 35 mmWeight: about 1.4 kg (excluding modules)Dimensions: 240 x 180 x 154 mm (W x D x H)Installation: Safe Area/Zone 2 (pending)
