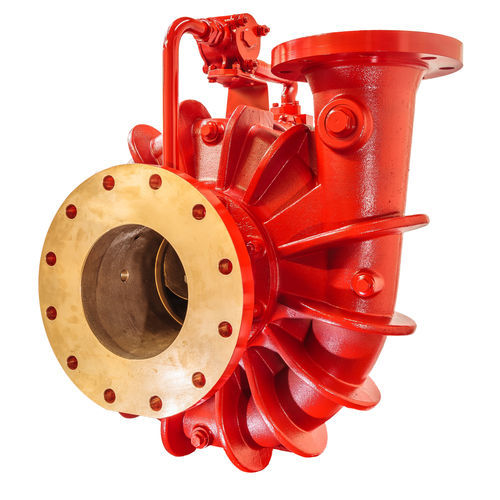

Centrifugal pump GV 10000

waterself-primingstationary

Single pressure vehicle mounted pump. Maximum flow rated at 10000l/min and maximum pressure discharge of 24bar. Within a compact envelope the pumps features an automatic water ring primer, self-adjusting mechanical seal on a stainless steel shaft directly coupled to the pump drive flange. Main pump castings are made of bronze, and includes a piston priming system and a range of suction and discharge configurations. Features Rated output at 3m lift of 8000 L/min at 15 Bar Maximum flow of 10000 L/min and maximum pressure discharge of 22 BAR Automatic water ring primer For minimal maintenance the spring-loaded mechanical seal is self-adjusting and self-lubricating Stainless steel shaft directly coupled to the pump drive flange Available in bronze
