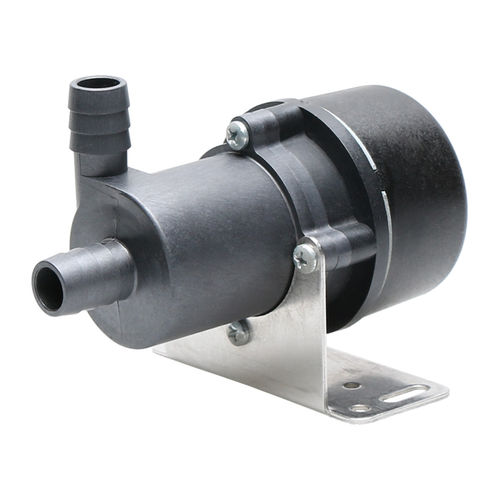

Chemical pump 15651 series
electricmagnetic-drivecentrifugal

chemical pump
chemical pump
chemical pump
Add to favorites
Compare this product


Characteristics

Media
for chemicals
Operation
electric, magnetic-drive
Technology
centrifugal
Domain
industrial
Applications
circulation, discharge
Material
EPDM
Protection level
chemically resistant
Other characteristics
suction, standard, OEM, heating, custom
Flow

3.75 us gal/min (14.1953 l/min)

Pressure

75 psi

Head

13'00" (3.96 m)

Description

Magnetic Drive Pumps Product Overview Magnetic drive centrifugal pump operation is similar to a standard centrifugal pump except the motor shaft seal is removed resulting in the elimination of leaks caused by shaft seal failure. Magnetic drive centrifugal pumps must be used where flooded suction conditions exist. GRI specializes in the custom design and manufacturing of fluid pumps for the OEM market. The chart below is a general overview of GRI’s Magnetic Drive Pumps. If you do not find a pump that meets your exact requirements, our dedicated Sales Team will work with you to create a solution specific to your application - whether it is customizing an existing pump or designing new. Applications Typical OEM Applications include, but are not limited to: Fluid circulation, glycol, water Medical Chillers and coolers, coolant Laser Systems Alternative Power Units Hydronic Systems Recreational Vehicles and Public Transit Marine Alternative energy, Fuel Cells Thermal heating and cooling Beverage Dispensers Printing and Imaging Specifications Flow Rates: Range to 35 gpm (132 lpm). Max. Discharge Head: Range to 70 feet (21.3 m). Max. Fluid Temperature: Up to 203°F (95°C). Consult GRI for higher fluid temperature needs. Motors: All motors, except the 15651 series and 18650 series motors which use sleeve bearings, have sealed electric motor grade ball bearings, are thermally protected, class B insulated, and continuous duty rated. Most pumps available with AC or DC motors. Features Corrosion resistant Hydraulically efficient No shaft seals Low current draw and heat rise Quiet operation Flexible mounting and body discharge positions NSF certified models available
