Wheeled carrier Sggrss 80´

platformfor containers

Overview

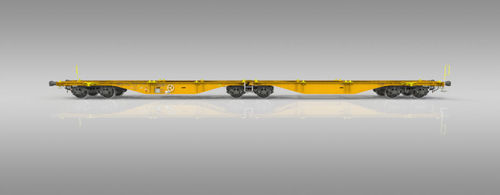

This two-platform articulated intermodal wagon Sggrss 80' on three bogies is designed for efficient transport of 20', 30' and 40' containers and compatible swap bodies. The wagon is compliant with TSI, EN and UIC standards and registered for traffic with TEN GE marking.

Features

• Articulated design with three bogies allowing flexible load distribution and reduced track forces.
• Designed and certified to meet TSI, EN and UIC requirements; UIC 596-6 compliance with "C" marking.
• High payload capacity: approximately 108.0 t total across both platforms.

Compatibility
Suitable for containers according to UIC 592 (ISO 668) and swap bodies in accordance with UIC 592 and UIC 596-6. Loading options follow the provided loading diagram.

• Series 1 freight containers – 1CX, 1C, 1CC, 1AX, 1A, 1AA, + 1BX, 1B, 1BB (1)(2)(3)
• Symmetrical swap bodies – (20), 40, + (30) (1), + (21), 22, 23, 24, (26), (29) (2), + (31) (3)
• Asymmetrical swap bodies – NA + (81), 82, (84), (85), (86) (1), + (60) (2)(3)

Technical specifications

• Axle load: 22.5 t / axle
• Track gauge: 1,435 mm
• Loading gauge: G1-TSI
• Brake regime: "SS" and "S"
• Brake type: GP-A (K)
• Max. speed at 135.0 t: 100 km/h
• Max. speed at 120.0 t: 120 km/h
• Climate condition: T1
• Minimum curve radius Rmin (single uncoupled wagon): 75.0 m
• Length over buffers: 26,040 mm
• Tare weight: ~27.0 t
• Payload: ~108.0 t
• Loading height: 1,155 mm
• Bogie type: Y25Ls(s)1-KV
• Number of container spigots: 16; 20; 24; 32; 40
