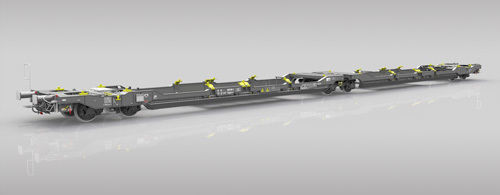

Wheeled carrier Sdggmrss

platformfor containers

Features

• This two-platform articulated wagon on three bogies belongs to a new family of intermodal wagons.
• The wagon is suitable for carrying semitrailers with an envelope according to compatibility code "e" as per IRS 50596-5.
• The wagon also carries ISO containers (20', 30', 40' and 45') and swap bodies in accordance with ISO 668, UIC 592 and IRS 50596-6.
• Design complies with TSI, EN and UIC standards and bears TEN GE marking for traffic operation.
• Meets IRS 50596-6 and carries the "C" and "P" marking with envelope compatibility code "e".
• Underframe complies with EN 12663-2.

Capabilities

• Containers of class 1 – 1C, 1CC, 1CX, 1B, 1BB, 1BX, 1A, 1AA, 1AX, 1EE according to ISO 668.
• Symmetrical and asymmetrical swap bodies according to IRS 50592.
• Semitrailers with an envelope according to compatibility code "e" per IRS 50596-5.

Loading
Loading possibilities are in accordance with the provided loading diagram; refer to the diagram for specific placement and axle load distribution limits.

Parameters
Axle load: 22.5 t
Track gauge: 1.435 mm
Running gauge: G1+GI1 – TSI WAG
Brake regime: "S" or "SS"
Brake type: GP-A (K)
Max. speed, SS regime (up to 20 t/axle): 120 km/h
Max. speed, S regime (up to 14.5 t/axle): 120 km/h
Max. speed, S/SS regime (up to 22.5 t/axle): 100 km/h
Climate conditions: T1, T3 – TSI WAG
R_min (single wagon): 75.0 m
Length over buffers: 34,200 mm
Tare weight: ~ 35.0 t
Payload: ~ 100.0 t
Loading height of containers: 1,155 mm
Bogie type: Y25Ls(s)di(f)-KC1(V)

Technical specifications

• Axle load: 22.5 t
• Track gauge: 1.435 mm
• Running gauge: G1+GI1 – TSI WAG
• Brake regime: "S" or "SS"
• Brake type: GP-A (K)
• Max. speed (SS regime, up to 20 t/axle): 120 km/h
• Max. speed (S regime, up to 14.5 t/axle): 120 km/h
• Max. speed (S/SS regime, up to 22.5 t/axle): 100 km/h
• Climate conditions: T1, T3 – TSI WAG
• R_min (single wagon): 75.0 m
• Length over buffers: 34,200 mm
• Tare weight: ~ 35.0 t
• Payload: ~ 100.0 t
• Loading height of containers: 1,155 mm
• Bogie type: Y25Ls(s)di(f)-KC1(V)
