Wheeled carrier Sgnss 60´
platformfor containers

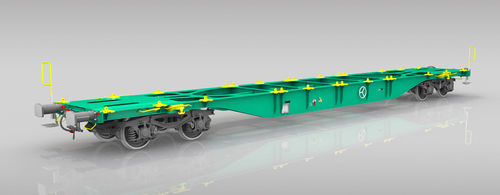

Wheeled carrier - Sgnss 60´ - Greenbrier Europe - platform / for containers
Wheeled carrier - Sgnss 60´ - Greenbrier Europe - platform / for containers
Wheeled carrier - Sgnss 60´ - Greenbrier Europe - platform / for containers - image - 2
Add to favorites
Compare this product

Characteristics

Locomotion
wheeled
Options
platform, for containers
Load capacity

72 t
(79.4 us ton)

Description

Features
  • This single-platform wagon on two bogies belongs to the Sgnss 60´ family of intermodal wagons.
  • Produced in configurations suitable for carrying ISO containers (20', 30', 40') and swap bodies for intermodal transport.
  • Design complies with TSI, EN and UIC standards and carries TEN GE marking for traffic operation.
  • Meets IRS 50596-6 and bears the "C" marking.
  • Underframe designed in accordance with EN 12663-2 and UIC 530-1 provisions for mounting the Automatic Coupler.


Capabilities
  • Compatible with ISO 668 container classes 1, 1C, 1B, 1A.
  • Accepts symmetrical and asymmetrical swap bodies according to IRS 50592.
  • Can be fitted with specialized superstructures equipped with ISO corner fittings.


Parameters (selected)
  • Axle load: 22.5 t/axle
  • Track gauge: 1,435 mm
  • Loading gauge: G1+GI1 - TSI
  • Brake regime: S or SS
  • Brake type: GP-A (K)
  • Max speed, SS regime (up to 20 t/axle): 120 km/h
  • Max speed, S regime (up to 14.5 t/axle): 120 km/h
  • Max speed, S/SS regime (up to 22.5 t/axle): 100 km/h
  • Climate condition: T1 - TSI
  • Minimum curve radius (Rmin): 75.0 m
  • Length over buffers: 19,740 mm
  • Tare weight (approx.): 18.0 t
  • Payload (approx.): 72.0 t
  • Loading height: 1,155 mm
  • Bogie type: Y25Ls(s)1-KV


Notes
  • Loading arrangements are subject to the loading diagram.
  • All dimensions are given in millimetres unless stated otherwise.
  • Information provided is for general reference.


Technical specifications
  • Model family: single-platform intermodal wagon on two bogies (Sgnss 60´).
  • Standards and certifications: conforms to TSI, EN and UIC standards; TEN GE marking; IRS 50596-6 with "C" marking.
  • Underframe compliance: EN 12663-2 and UIC 530-1 provisions for mounting the Automatic Coupler.
  • Compatible unit loads: ISO 668 container classes 1/1C/1B/1A; symmetrical and asymmetrical swap bodies per IRS 50592; specialized superstructures with ISO corners.
  • Axle load rating: 22.5 t/axle.
  • Track gauge: 1,435 mm (standard gauge).
  • Brake: regime options S or SS; brake type GP-A (K).
  • Maximum speeds: up to 120 km/h in SS or S regimes (depending on axle load); up to 100 km/h for 22.5 t/axle in S/SS regime.
  • Minimum curve radius (Rmin): 75.0 m.
  • Length over buffers: 19,740 mm.
  • Tare weight (approx.): 18.0 t; Payload (approx.): 72.0 t.
  • Loading height: 1,155 mm.
  • Bogie type: Y25Ls(s)1-KV.
