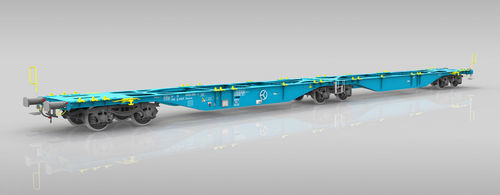

Wheeled carrier Sggmrss 90´

platformfor containers

Features

• Two-platform articulated wagon on three bogies belonging to a new family of intermodal wagons.
• Manufactured in multiple configurations to carry containers of various lengths (20', 30', 40' and 45') and swap bodies for intermodal transport.
• Design complies with TSI, EN and UIC standards and carries TEN GE marking for traffic operation.
• Complies with IRS 50596-6 and bears the "C" marking.
• Underframe complies with EN 12663-2 and UIC 530-1 provisions for mounting the Automatic Coupler.

Capabilities

• Supports ISO 668 container classes: 1, 1C, 1B, 1A, 1EE.
• Accepts symmetrical and asymmetrical swap bodies according to IRS 50592.
• Can be fitted with specialized superstructures equipped with appropriate ISO corner fittings.

Notes
Loading possibilities are in accordance with the loading diagram.

Parameters
Axle load: 22.5 t / axle
Track gauge: 1,435 mm
Loading gauge: G1+GI1 – TSI WAG
Brake regime: "S" or "SS"
Brake type: GP-A (K)
Max. speed, SS regime (up to 20 t/axle): 120 km/h
Max. speed, S regime (up to 14.5 t/axle): 120 km/h
Max. speed, S/SS regime (up to 22.5 t/axle): 100 km/h
Climate condition: T1 – TSI WAG
Rmin: 75.0 m
Length over buffers: 29,590 mm
Tare weight: ~27.8 t
Payload: ~107.2 t
Loading height: 1,155 mm
Bogie type: Y25Ls(s)1-KV

Technical specifications

• Axle load: 22.5 t / axle
• Track gauge: 1,435 mm
• Loading gauge: G1+GI1 – TSI WAG
• Brake regime: "S" or "SS"
• Brake type: GP-A (K)
• Max speed (SS regime, up to 20 t/axle): 120 km/h
• Max speed (S regime, up to 14.5 t/axle): 120 km/h
• Max speed (S/SS regime, up to 22.5 t/axle): 100 km/h
• Climate condition: T1 – TSI WAG
• Minimum curve radius (Rmin): 75.0 m
• Length over buffers: 29,590 mm
• Tare weight: approximately 27.8 t
• Payload: approximately 107.2 t
• Loading height: 1,155 mm
• Bogie type: Y25Ls(s)1-KV
• Compatible containers: ISO 668 classes (20', 30', 40', 45') and swap bodies per IRS 50592
