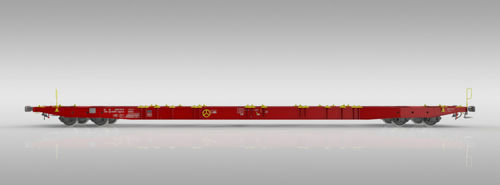

Wheeled carrier Sggnss 80´

for containers

Features

• This intermodal wagon is suitable for carrying containers and swap bodies of various lengths (20', 30', 40') classified in ISO 668.
• The wagon design meets the requirements of TSI, EN and UIC standards and has TEN GE marking for traffic operation.

Capabilities

• Containers according to ISO 668: classes 1 – 1E, 1C, 1B, 1A.
• Swap bodies according to UIC 592, in compliance with UIC 596-6:
  • Symmetrical swap bodies – (20), (21), 22, 23, 24, (26), (29), (30), (31), 40, 42, (44), (45).
  • Asymmetrical swap bodies – (60), (81), 82, (84), (85), (86), (91), (94), (95), 96, (97), (98).

Additional information
Loading possibilities are in accordance with the loading diagram.

Parameters (table)
Axle load: 22.5 t
Tare weight: 21.5 t
Track gauge: 1,435 mm
Running gauge: G1-TSI
Brake regime: "SS"
Brake type: GP-A (K)
Max. speed (up to 14.5 t / axle): 120 km/h
Max. speed (over 14.5 t / axle): 100 km/h
Climate conditions: T1-TSI
Rmin: 75.0 m
Rmin: 150.0 m
Length over buffers: 25,940 mm
Underframe length: 24,700 mm
Loading height: 1,155 mm
Bogie type: Y25Ls(s)1-K
Wheel diameter: 920 mm
Number of ct. spigots: 34

Note
The descriptions provided herein are for general information purposes only.

Technical specifications

• Axle load: 22.5 t
• Tare weight: 21.5 t
• Track gauge: 1,435 mm
• Running gauge: G1-TSI
• Brake regime: "SS"
• Brake type: GP-A (K)
• Max. speed (up to 14.5 t / axle): 120 km/h
• Max. speed (over 14.5 t / axle): 100 km/h
• Climate conditions: T1-TSI
• Minimum curve radius (Rmin): 75.0 m and 150.0 m
• Length over buffers: 25,940 mm
• Underframe length: 24,700 mm
• Loading height: 1,155 mm
• Bogie type: Y25Ls(s)1-K
• Wheel diameter: 920 mm
• Number of container spigots: 34
• Suitable for ISO 668 containers (20', 30', 40') and numerous UIC swap body types (symmetrical and asymmetrical per UIC 592 / UIC 596-6)
