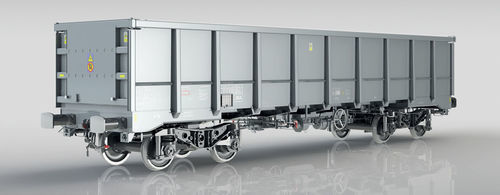

Wheeled carrier JNA
Add to favorites
Compare this product
Characteristics
- Locomotion
- wheeled
- Load capacity
77.9 t
(85.9 us ton)
Description
Features
Capabilities
Technical specifications
- Open box wagon with approximately 60 m³ capacity designed for level fill of bulk products; adaptable to other bulk handling requirements.
- Length, height and axle load configurable to modify volume or payload per unit length.
- Unloading carried out by mechanical excavators.
- Designed to comply with TSI, EN and Group Standards for UK traffic operation.
Capabilities
- Simple solution for bulk handling operations.
- Wagon dimensions can be adjusted to meet customer-specific requirements.
- Clean-out hatches can be fitted in the sides of the box.
- Track-friendly bogies reduce track access charges and track stress.
Technical specifications
- Axle load: 25.4 t / axle
- Track gauge: 1,435 mm
- Loading gauge: W6a
- Brake regime: UK
- Brake type: GP (K)
- Max. speed at 101.6 t: 100 km/h (60 mph)
- Max. speed (unloaded): 120 km/h (75 mph)
- Climate condition: T1
- Minimum curve radius (Rmin): 70.0 m
- Length over buffers: 13,970 mm
- Tare weight: 23.7 t
- Payload: ~ 77.9 t
- Loading opening: 2,470 x 12,758 mm
- Internal height: 1,890 mm
- Box material: standard steel
- Bogie type: LN25 (Axiom Rail)
- Wheel diameter: 840 mm
- Bogie wheel base: 2,000 mm
