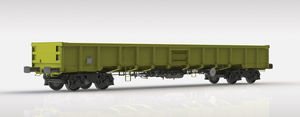

Wheeled carrier Eamnos E04E
heavy-dutydump

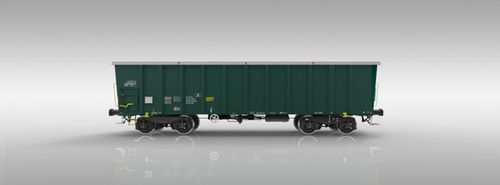

Wheeled carrier - Eamnos E04E - Greenbrier Europe - heavy-duty / dump
Wheeled carrier - Eamnos E04E - Greenbrier Europe - heavy-duty / dump
Wheeled carrier - Eamnos E04E - Greenbrier Europe - heavy-duty / dump - image - 2
Wheeled carrier - Eamnos E04E - Greenbrier Europe - heavy-duty / dump - image - 3
Wheeled carrier - Eamnos E04E - Greenbrier Europe - heavy-duty / dump - image - 4
Wheeled carrier - Eamnos E04E - Greenbrier Europe - heavy-duty / dump - image - 5
Wheeled carrier - Eamnos E04E - Greenbrier Europe - heavy-duty / dump - image - 6
Wheeled carrier - Eamnos E04E - Greenbrier Europe - heavy-duty / dump - image - 7
Wheeled carrier - Eamnos E04E - Greenbrier Europe - heavy-duty / dump - image - 8
Wheeled carrier - Eamnos E04E - Greenbrier Europe - heavy-duty / dump - image - 9
Wheeled carrier - Eamnos E04E - Greenbrier Europe - heavy-duty / dump - image - 10
Wheeled carrier - Eamnos E04E - Greenbrier Europe - heavy-duty / dump - image - 11
Wheeled carrier - Eamnos E04E - Greenbrier Europe - heavy-duty / dump - image - 12
Wheeled carrier - Eamnos E04E - Greenbrier Europe - heavy-duty / dump - image - 13
Wheeled carrier - Eamnos E04E - Greenbrier Europe - heavy-duty / dump - image - 14
Wheeled carrier - Eamnos E04E - Greenbrier Europe - heavy-duty / dump - image - 15
Wheeled carrier - Eamnos E04E - Greenbrier Europe - heavy-duty / dump - image - 16
Wheeled carrier - Eamnos E04E - Greenbrier Europe - heavy-duty / dump - image - 17
Wheeled carrier - Eamnos E04E - Greenbrier Europe - heavy-duty / dump - image - 18
Wheeled carrier - Eamnos E04E - Greenbrier Europe - heavy-duty / dump - image - 19
Add to favorites
Compare this product

Characteristics

Locomotion
wheeled
Options
heavy-duty, dump
Load capacity

71 t
(78.3 us ton)

Description

Features
  • This four-axle open box wagon is designed for the transportation of coal, ore, gravel and sand.
  • Wagon is loaded from the top. Unloading is carried out by rotary or side wagon tippers, or by means of buckets.
  • The wagon design complies with TSI, EN and UIC standards and is marked TEN GE for traffic operation.


Capabilities
  • Cleaning access is provided via small doors on each side wall for easier maintenance.
  • The wagon is fitted with one weighing valve allowing partial loading and billing by weight.


Technical specifications
  • Axle load: 22.5 t / axle
  • Track gauge: 1,435 mm
  • Loading gauge: G1-TSI
  • Brake regime: "S"
  • Brake shoe: C810
  • Max. speed at 90.0 t: 100 km/h
  • Max. speed (unloaded): 120 km/h
  • Climate condition: T1
  • R_min: 35.0 m
  • Tare weight: 19.0 t
  • Payload: 71.0 t
  • Internal length: 11.3 m
  • Loading area: 32.2 m²
  • Loading height: 1,235 mm
  • Floor plate: 5 mm – HARDOX type
  • Box plates: 5 mm – S700MC
  • Bogie type: Y25Lsd-K/-K-V or Y25Lsd-KP1
