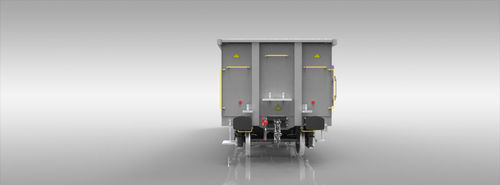

Wheeled carrier Eamnos E06A

Features

• This four-axle box wagon is suitable for the transportation of aggregate and ore products.
• Wagon is loaded from the top. The products are unloaded using mechanical buckets.
• The wagon design meets the requirements of TSI, EN, UIC standards and has TEN GE marking for traffic operation.
• The underframe headstocks comply with EN 12663-2 and UIC 530-1 provisions for the mounting of Automatic Couplers.

Capabilities

• With the wagon length over buffers of 11.300 mm and a potential payload of up to 72.0 t (depending on the selected wall thicknesses), it allows for the highest efficiency in the transport of goods.
• Wagon cleaning is possible by doors on each side wall. The wagon is equipped with one weighing valve so partial loading is possible.
• The use of High Strength steel increases robustness even when exposed to the heaviest shocks while loading or unloading.

Parameters (E06A | E06B)
Axle load: 22.5 t / axle | 22.5 t / axle
Track gauge: 1,435 mm | 1,435 mm
Loading gauge: G1-TSI | G1-TSI
Brake regime: "S" | "S"
Brake shoe: C810 | C810
Max. speed at 90.0 t: 100 km/h | 100 km/h
Max. speed (unloaded): 120 km/h | 120 km/h
Climate condition: T1 | T1
Rmin (single wagon): 35.0 m | 35.0 m
Tare weight: 19.0 t | 18.0 t
Payload: 71.0 t | 72.0 t
Internal length: 9.9 m | 9.9 m
Loading area: 26.2 m2 | 26.2 m2
Floor plate: 8 mm – HARDOX type | 6 mm – HARDOX type
Box plates: 6 mm – S700MC | 5 mm – S700MC
Bogie type: Y25Lsd-KP1(V) | Y25Lsd-KP1(V)

Technical specifications

• Model designations: E06A and E06B (series: Eamnos)
• Wagon type: 4-axle open box wagon for aggregates and ore
• Length over buffers: 11,300 mm
• Internal length: 9.9 m
• Loading area: 26.2 m²
• Payload: up to 71.0 t (E06A) / 72.0 t (E06B) depending on wall thickness
• Tare weight: 19.0 t (E06A) / 18.0 t (E06B)
• Axle load: 22.5 t/axle
• Track gauge: 1,435 mm
• Loading gauge: G1-TSI
• Max speed: 100 km/h at 90.0 t, 120 km/h unloaded
• Climate suitability: T1
• Minimum curve radius (single wagon): 35.0 m
• Floor plate material/thickness: HARDOX type 8 mm (E06A) / 6 mm (E06B)
• Box plate material/thickness: S700MC 6 mm (E06A) / 5 mm (E06B)
• Bogie type: Y25Lsd-KP1(V)
• Brake regime: "S", Brake shoe: C810
• Design standards: TSI, EN, UIC; TEN GE marking; underframe headstocks compliant with EN 12663-2 and UIC 530-1 for Automatic Couplers
