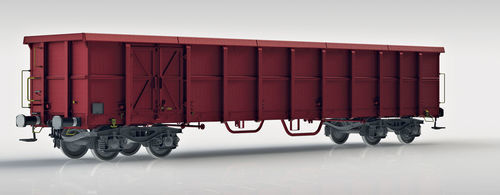

Wheeled carrier Eanos

dump

Product overview

• This open-top box wagon is suitable for transportation of weather-resistant materials, mainly bulk goods (coal, ore, stone, briquettes, scrap) as well as piece cargoes.
• The wagon can be loaded via the top box opening or via four openings (1,800 x 1,800 mm) after release of the double-wing doors.
• The wagon design meets the requirements of TSI, EN and UIC standards and carries TEN GE marking for traffic operation.

Capabilities

• The wagon can be unloaded laterally by rotary tipplers via the top box opening or mechanically/manually via the four openings (1,800 x 1,800 mm) after release of the double-wing doors.

Parameters (table)
Axle load: 22.5 t / axle
Track gauge: 1,435 mm
Loading gauge: G1-TSI
Brake regime: "S"
Brake type: GP (K)
Max. speed (loaded to 90.0 t): 100 km/h
Max. speed (unloaded): 120 km/h
Climate condition: T1
R_min: 35.0 m
Length over buffers: 15,740 mm
Tare weight: ~ 24.0 t
Payload: ~ 66.0 t
Loading opening: 14,490 x 2,720 mm
Loading area: 39.4 m²
Loading height: 1,235 mm
Floor plate: 6 mm
Box plates: 4 and 6 mm
Bogie type: Y25Ls1-K


Technical specifications

• Model family: Eanos
• Volume: 82.5 m³
• Axle load: 22.5 t per axle
• Track gauge: 1,435 mm (standard gauge)
• Loading gauge classification: G1-TSI
• Brake regime: "S"; Brake type: GP (K)
• Maximum speed (loaded to 90.0 t): 100 km/h; Maximum speed (unloaded): 120 km/h
• Operational climate condition: T1
• Minimum curve radius (R_min): 35.0 m
• Length over buffers: 15,740 mm
• Tare weight approximately: 24.0 t; Payload approximately: 66.0 t
• Loading opening dimensions: 14,490 x 2,720 mm; Four additional openings 1,800 x 1,800 mm (after release of double-wing doors)
• Loading area: 39.4 m²; Loading height: 1,235 mm
• Floor plate thickness: 6 mm; Box plate thickness: 4 and 6 mm
• Bogie type fitted: Y25Ls1-K
• Compliance: Designed to meet TSI, EN and UIC standards; TEN GE marking for traffic operation
