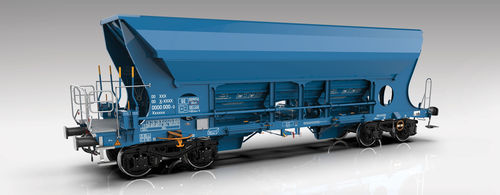

Wheeled carrier Facnps

Features

• Four-axle hopper/box wagon designed for bulk aggregate transport
• Compliant with TSI, EN and UIC standards; TEN GE marking for traffic operation
• Unloading directions: to conveyor, between rails, outside rails

Capabilities

• Mechanically operated bottom discharge flaps
• Individually operated flaps with independent control
• Two weighing valves for load monitoring
• Discharge flap tightness up to 10 mm

Parameters
Axle load: 22.5 t / axle
Track gauge: 1,435 mm
Loading gauge: G1-TSI
Brake regime: "S"
Brake shoe: C810
Max. speed (loaded to 90.0 t): 100 km/h
Max. speed (unloaded): 120 km/h
Climate condition: T1
Minimum curve radius (Rmin): 75.0 m
Tare weight: 20.6 t
Payload: 69.4 t
Loading volume: 48.0 m3
Bottom aperture (discharge opening): 840 mm
Bogie type: Y25 Ls(s)1-K(V)

Measurements
All measurements are in millimeters.

Technical specifications

• Product type: 4-axle aggregate hopper/box wagon suitable for bulk aggregate transport
• Standards compliance: TSI, EN, UIC; TEN GE marking for traffic operation
• Unloading options: to conveyor, between rails, outside rails
• Discharge system: mechanically operated bottom flaps with individual operation
• Weighing: two weighing valves installed
• Flap tightness: up to 10 mm
• Axle load: 22.5 t/axle
• Track gauge: 1,435 mm
• Loading gauge: G1-TSI
• Brake regime: "S"; Brake shoe: C810
• Speeds: 100 km/h (loaded to 90.0 t); 120 km/h (unloaded)
• Climate rating: T1
• Minimum curve radius (Rmin): 75.0 m
• Tare weight: 20.6 t; Payload: 69.4 t
• Loading volume: 48.0 m3
• Bottom aperture: 840 mm
• Bogie: Y25 Ls(s)1-K(V)
