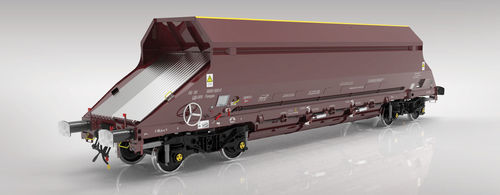

Wheeled carrier Fanpps

dump

Features

• Four-axle hopper wagon designed for transportation of aggregate and sand
• Configured for the UK market; meets TSI requirements
• Unloading direction: between the rails only

Capabilities

• Pneumatically operated bottom doors
• Individually operated bottom doors, independent of each other
• Bottom doors fitted with a flow control system for controlled discharge
• Two weighing valves installed for load monitoring

Parameters
Axle load: 25.4 t/axle
Track gauge: 1435 mm
Loading gauge: W6a
Brake regime: S
Brake shoe: TMD804
Max. speed at 101.6 t: 60 mph (~97 km/h)
Max. speed at 25 t (unloaded): 75 mph (~121 km/h)
Climate condition: T1
Minimum curve radius (single wagon): 75 m
Tare weight: 23.2 t
Payload: 78.4 t
Capacity: 55.0 m³
Body plates: 4 mm top, 5 mm bottom – S355J2W
Bogie type: LN25


Measurements
All measurements are in millimeters.


Technical specifications

• Model series: Fanpps
• Intended use: transportation of aggregate and sand
• Market / Compliance: Designed for UK market, meets TSI requirements
• Unloading direction: between the rails only
• Bottom doors: pneumatically operated; individually operated and independent; equipped with flow control system
• Weighing: wagon equipped with two weighing valves
• Axle load: 25.4 t/axle
• Track gauge: 1435 mm
• Loading gauge: W6a
• Brake regime: S
• Brake shoe: TMD804
• Max. speed at 101.6 t: 60 mph (~97 km/h)
• Max. speed at 25 t (unloaded): 75 mph (~121 km/h)
• Climate condition: T1
• Minimum curve radius (single wagon): 75 m
• Tare weight: 23.2 t
• Payload: 78.4 t
• Capacity: 55.0 m³
• Body plates: 4 mm top, 5 mm bottom – S355J2W
• Bogie type: LN25
