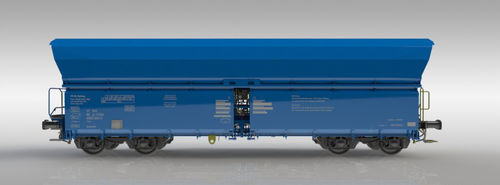

Wheeled carrier Falns
Add to favorites
Compare this product
Characteristics
- Locomotion
- wheeled
- Load capacity
64.4 t
(71 us ton)
Description
Features
Capabilities
Technical parameters
- This self-discharging open hopper wagon is suitable for the transportation of weather-resistant bulk materials, mainly coal, coke, talc, limestone, gravel and sand.
- Side unloading is achieved by pneumatically operated doors: all four at once or two and two from opposite sides. Compressed air is supplied from a separate 10 bar pipeline with isolation valves. A manual emergency system allows unloading without compressed air.
- The wagon is designed according to TSI, EN and UIC standards for RIV and TEN RIV traffic operation.
Capabilities
- Two loading/unloading methods: single-stage full-load transport or staged loading/unloading.
- Short-term thermal resistance up to +80 °C (heating ovens).
- Discharge control is possible from both sides of the wagon. Air reservoirs enable at least one open/close cycle of the doors for a stand-alone wagon.
- Door tightness suitable for bulk with grain size > 1 mm.
Technical parameters
- Axle load: 22.5 t / axle
- Track gauge: 1,435 mm
- Loading gauge: G1-TSI
- Brake regime: "S"
- Brake type: GP-A-K
- Max. speed at 90.0 t: 100 km/h
- Max. speed (unloaded): 120 km/h
- Climate condition: T (RIV)
- R_min: 75.0 m
- Length over buffers: 13,500 mm
- Tare weight: ~ 25.6 t
- Payload: ~ 64.4 t
- Loading opening: 12,660 x 1,950 mm
- Unloading length: 4 x 5,430 mm
- Slope sheet angle: 49°
- Number of sections: 2
- Material of box: Carbon steel
- Material of slope edges: Stainless
- Bogie type: Y25Lsd1-K
- Doors operation: Pneumatic
- Air pressure: From 5 to 10 bar
