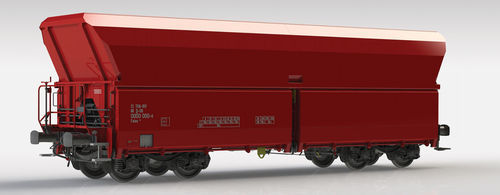

Wheeled carrier Falns 184

dump

Features

• This self-discharging open hopper wagon is suitable for transportation of weather-resistant bulk materials, primarily limestone.
• Rapid unloading is achieved via side discharge through four doors, all operated hydraulically. Hydraulic power is supplied by a wheel-set driven pump; a manually operated emergency pump is provided on the platform.
• The wagon is designed according to TSI, EN and UIC standards for RIV and TEN RIV traffic operation.

Capabilities

• Two unloading-width options: 3,750 mm or 4,300 mm.
• Discharge control accessible from both sides of the wagon.
• Doors can be actuated through up to three open/close cycles using stored energy from a hydraulic accumulator pump.
• Door tightness suitable for grain size > 1 mm.

Parameters (table)
Axle load: 22.5 t / axle
Track gauge: 1,435 mm
Loading gauge: G1-TSI
Brake regime: "S"
Brake type: GP-A-K
Max. speed at 90.0 t: 100 km/h
Max. speed (unloaded): 120 km/h
Climate condition: T<RIV>
R_min: 75.0 m
Length over buffers: 12,540 mm
Tare weight: ~ 23.7 t
Payload: ~ 66.3 t
Loading volume: 77.0 m3
Loading opening: 11,702 x 1,868 mm
Unloading length: 10,508 mm (total)
Unloading width: 3,750 or 4,300 mm
Slope sheet angle: 49°
Number of sections: 2
Material of box: Carbon steel
Bogie type: BA 628.5 (K), BA 629.5 (K)
Doors operation: Hydraulic


Technical specifications

• Model: Falns 184
• Loading volume: 77.0 m3
• Axle load: 22.5 t / axle
• Track gauge: 1,435 mm
• Loading gauge: G1-TSI
• Brake regime: "S"
• Brake type: GP-A-K
• Max. speed at 90.0 t: 100 km/h
• Max. speed (unloaded): 120 km/h
• Minimum curve radius (R_min): 75.0 m
• Length over buffers: 12,540 mm
• Tare weight: ~ 23.7 t
• Payload: ~ 66.3 t
• Loading opening: 11,702 x 1,868 mm
• Unloading length (total): 10,508 mm
• Unloading width options: 3,750 mm or 4,300 mm
• Number of sections: 2
• Material of box: Carbon steel
• Bogie types: BA 628.5 (K), BA 629.5 (K)
• Doors operation: Hydraulic (wheel-set hydraulic pump plus manual emergency pump)
• Designed to standards: TSI, EN, UIC for RIV and TEN RIV traffic operation
