Wheeled carrier Faccns

dumpbidirectional

Overview

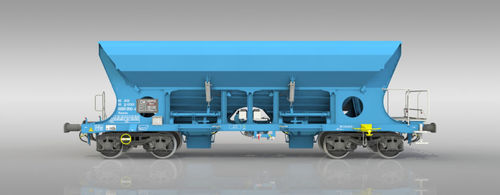

This self-discharging open hopper wagon Faccns 49 m³ is designed for the transport of weather-resistant bulk materials and aggregates. It combines bilateral unloading capability with pneumatic discharge control for precise flow management.

Features

• Self-discharging open hopper suited to weather-resistant bulk products and aggregates.
• Pneumatic control system operating two bottom doors discharging to the side of the rails for controlled material flow.
• Cylindrical bottom doors driven by four pneumatic cylinders with a mechanical emergency override operable by hand tool.
• Designed and manufactured to meet TSI, EN and UIC standards; marked TEN CW for traffic operation.
• Underframe prepared in accordance with EN 12663-2 and UIC 530-1 for mounting of an Automatic Coupler.

Capabilities

• Unloading possible from both sides to suit different terminal layouts.
• High-wear components fabricated from wear-resistant steel for extended service life.
• Equipped with two weighing valves for load monitoring.
• Pneumatic system allows operator control of discharge rate.

Technical specifications

• Axle load: 22.5 t
• Track gauge: 1435 mm
• Running gauge: GC (G2+GI1) TSI
• Brake regime: "S"
• Brake type: GP-A (K)
• Max. speed – up to 14.5 t axle load or empty: 120 km/h
• Max. speed – loaded: 100 km/h
• Climate conditions: T1 – TSI
• Minimum curve radius (single wagon): 75.0 m
• Length over buffers: 12,680 mm
• Tare weight: 21.0 t
• Payload: 69.0 t
• Hopper volume: 49.0 m³
• Width of loading opening: 2,000 mm
• Bogie type: Y25Lsdi(f)-KC1
• All measurements are in millimetres.
