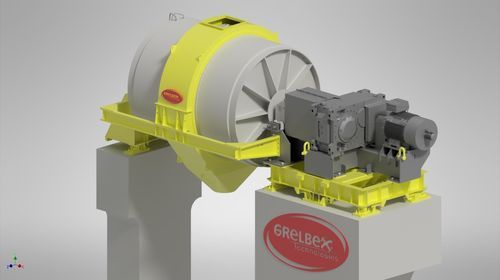

Ceramic mill BB Typefor orefor powderscoarse powder
Add to favorites
Compare this product
Characteristics
- Product applications
- silica, coarse powder, for powders, for ceramics, talc, kaolin, quartz, for limestone, mica, for ore, bulk solids
- Technology
- ball
- Orientation
- horizontal
- Material of the grinding tool
- high alloy steel
- Other characteristics
- dry milling, robust, ultrafine, variable speed, heavy-duty, batch, low-speed, cylindrical, high-capacity, for medium-hardness products
- Sector
- for recycling, for the chemical industry
- Final grain size
Max.: 500 µm
Min.: 50 µm
- Rotational speed
Max.: 60 rpm
(377 rad.min-1)Min.: 10 rpm
(63 rad.min-1)- Output
Max.: 10,000 kg/h
(22,046 lb/h)Min.: 100 kg/h
(220 lb/h)- Motor power
Max.: 100 kW
(135.96 hp)Min.: 15 kW
(20.39 hp)- Sound pressure
Max.: 100 dB
Min.: 50 dB
- Machine length
Max.: 10,000 mm
(394 in)Min.: 3,000 mm
(118 in)- Machine width
Max.: 3,500 mm
(138 in)Min.: 1,500 mm
(59 in)
Description
Type of mill : BALL Mill
OPERATION:
The ball mill is an industrial grinding machine that uses balls (made of steel, ceramic, or other hard material) rotating within a cylinder. The impact on the material and the friction of the balls reduce the size of the particles to be ground.
DESIGN:
The mill consists of a rotating cylinder, grinding balls, a drive motor, a feeding device, and a discharge system. The rotation of the cylinder ensures the mixing and fragmentation of the material.
- Robust structure made of welded steel sheets
- Internal liner available
- Flywheel available
- Depending on the operating mode, central or lateral discharge
Efficiency depends on the rotation speed, the size and load of the grinding media, the type of material, and the grinding time. Careful control of these parameters optimizes fineness and energy consumption.
APPLICATIONS :
Used in many sectors: cement plants, mining, metallurgy, chemicals, and ceramics manufacturing. It is used for the fine grinding or pulverization of solid materials.
- Kaolin
- Talc
- Limestone
- Gypsum
