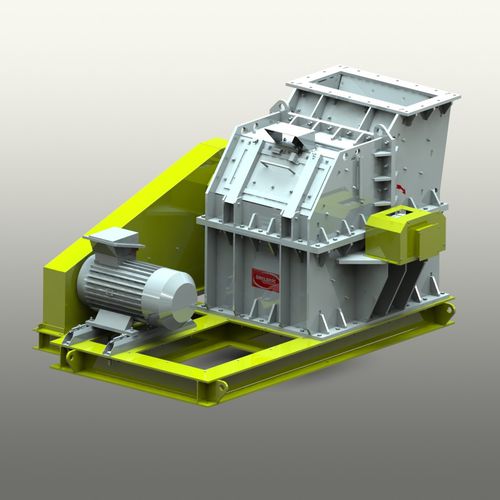

Powder mill MA Typecoarse powderbuilding materialsmineral
Add to favorites
Compare this product
Characteristics
- Product applications
- coarse powder, for powders, mineral, building materials
- Technology
- hammer
- Orientation
- horizontal
- Material of the grinding tool
- high alloy steel
- Other characteristics
- dry milling, compact, high-speed, high-performance, robust, micronization, in-line, heavy-duty
- Sector
- for the chemical industry, for sample preparation
- Final grain size
Max.: 15 mm
(1 in)Min.: 1 mm
(0 in)- Rotational speed
Max.: 1,500 rpm
(9,425 rad.min-1)Min.: 600 rpm
(3,770 rad.min-1)- Output
Max.: 200 t/h
(122 lb/s)Min.: 30 t/h
(18 lb/s)- Motor power
Max.: 100 kW
(135.96 hp)Min.: 5 kW
(6.8 hp)- Machine length
Max.: 1,600 mm
(63 in)Min.: 800 mm
(31 in)- Machine width
Max.: 1,530 mm
(60 in)Min.: 925 mm
(36 in)- Machine height
Max.: 1,350 mm
(53 in)Min.: 730 mm
(29 in)- Machine weight
Max.: 8,000 kg
(17,637 lb)Min.: 1,100 kg
(2,425 lb)
Description
THEORY OF OPERATION:
- Materials are reduced by the impact percussion effect produced by articulated hammers turning at high speed in a removable impact plate crushing chamber.
- The products are graded at the exit by a grill made of bars, the intervals of wich can be adjusted, with three differential crushing zones to facilitate product evacuation.
DESIGN:
- Heavy-duty welded sheet metal structure.
- Flange rotor on wich the articulated hammers are mounted.
- The rotor rotates within ball bearings.
- Rotor drive is by an electric or thermal motor.
- A sieving grill is provided by adjustable-spread bars.
ADVANTAGES:
- Possibility of obtaining a grading curve by rapid adjustment of grid opening.
- Economical: by reversal of bars
- Energy-saving due to flywheel.
- Accessible internally through fast-locking doors.
- High reduction ratio 1/20 and more.
- Sturdiness because of its welded metal design.
