Oil lubrication system FluiLub

spray

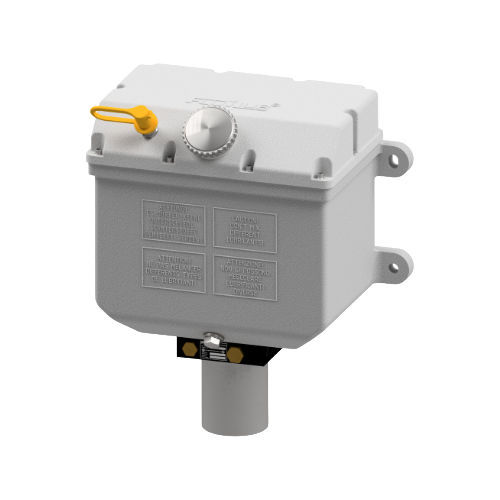

For all rail vehicles, from freight trains to streetcars, wear on the wheels and the rail is a major maintenance and cost factor. The noise generated by wheels on tracks, especially in curves, adds environmental problems to the service needs of rail equipment. The FluiLub rail maintenance systems bring an end to the squealing noise of rails in narrow curves and efficiently reduce the wear of wheels and rails. The FluiLub system is developed for using thixotropic lubricants with high solid contents, achieving an ideal combination of adhesion and flow-ability in a spray lubricant for high-stress applications. The system is installed mainly on the leading vehicle axle. Due to the lubricants used, the lubricant is transferred to the following rail heads or wheel flanges. The system works with a special mixing distributor which divides the lubricant/air mixture precisely between the connected spray nozzles. The nozzles spray the lubricant onto the wheel flange or rail during a set spray time on both sides simultaneously. The FluiLub pump is available in two versions, the Flui I and the Flui II. The Flui II is equipped with an internal pump for a space saving installation and comes in a pre-set output rate, where the output rate of the Flui I is adjustable. As a single line pneumatic spraying system, FluiLub installations require no moving parts except for the pump. This means; less wear, little maintenance requirements and therefore low life-cycle costs.
