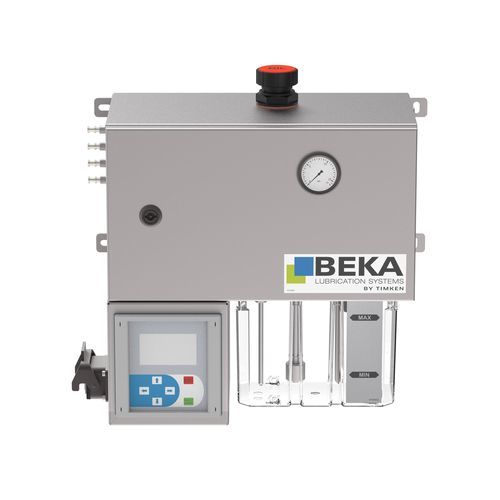

Air/oil lubrication system SprayLub

compact

General The BEKA SprayLub is an oil-air lubrication system designed for optimal performance and longevity in high-speed applications. It transports oil into the lubrication line to form a protective film that continuously supplies critical components. The system includes a pre-lubrication cycle that delivers oil before heavy-duty operation, uses air to distribute small oil quantities to avoid oil dust, and features a compact, modular architecture with separate control and mechanical units to facilitate maintenance. The control unit offers an intuitive multilingual menu.

Key features

• Pre-lubrication cycle: supplies oil to components (e.g., bearings) before heavy loads.
• Oil-air distribution: prevents oil dust and provides clean, controlled lubrication.
• Compact, modular design: 2.7-litre reservoir, control unit, motorized gear pump, pressure switches, level monitoring, filters, air maintenance unit and mixing distributors.
• Connect up to four lubrication points using 4 mm lines; available without integrated mixing distributors for external mixing units.
• Integrated pressure relief valve protecting the system up to 30 bar oil pressure.
• Precise dosing via a powerful gear pump and intelligent metering valves in the mixing manifolds.
• Continuous and demand-based lubrication during pressure build-up and holding time.
• Automatic pressure relief after each cycle to reduce main-line pressure for safety.
• Customisable lubrication intervals through the integrated control unit.
• Engineered to lubricate and cool high-speed bearings; suitable for spindles and spray lubrication of chains or surfaces.

Technical data Outlets: 2 or 4
Delivery volume: 2 or 4 x 30 mm3/stroke or 0.4 l/min without mixing distributor
Lubricant: Oil, viscosity range 20 – 700 CsT
Reservoir size: 2.7 litres
Operating pressure (air): 5 – 10 bar (72.5 - 145 psi)
Operating pressure (oil): Max. 30 bar (507 psi)
Dimensions: Approx. 479 x 432 x 222 mm (WxHXD)
Nominal voltage: 90 - 260 V AC

Models / versions

• SprayLub 0
• SprayLub 2
• SprayLub 4
