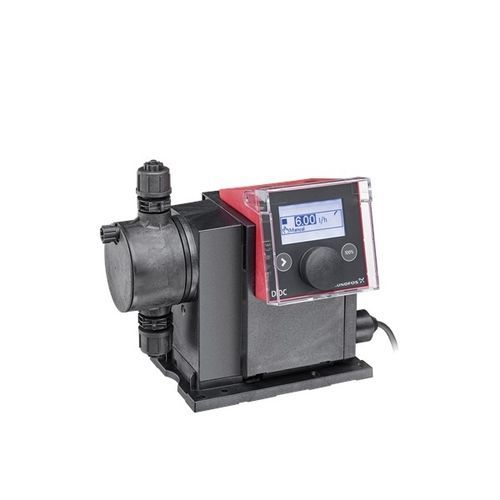

Diaphragm pump DDC series

waterwastewaterstepper motor-driven

SMART Digital diaphragm dosing pump with internal stepper motor drive. User-friendly at optimum price-performance-ratio (Digital Dosing Convenience). The SMART Digital DDC is a compact positive displacement, diaphragm dosing pump with variable-speed drive (stepper motor) and intelligent control electronics with minimum energy consumption. The SMART Digital Dosing series operates at full stroke length to ensure optimum accuracy, priming and suction, even for high-viscosity or degassing liquids. The duration of each discharge stroke varies according to the capacity set, resulting in optimum smooth and continuous discharge flow. The click-stop mounting plate allows installation in three different positions without using any additional accessories. The control cube can be turned easily into front, left or right position. The click wheel and the multi-coloured backlit graphical, plain-text LC display make commissioning and operation intuitive. The control elements are protected by a transparent cover. The dosing head is composed of: Long lifetime and universal, chemically resistant full-PTFE diaphragm. Double ball valves for highest dosing accuracy. Deaeration valve for easy start-up. Operation modes: Manual dosing in ml/h, I/h or gph. Pulse control in ml/pulse (incl. memory function). Analog control 0/4-20 mA. Other features: Two SlowMode steps (anti-cavitation), 50 % (maximum flow= 7.5 l/h) and 25 % (maximum flow= 3.75 l/h), e.g. for high-viscosity or degassing liquids. Service information display to show when service and which wear-part order number is required. Two-step key lock function to protect the pump against unauthorised access.
