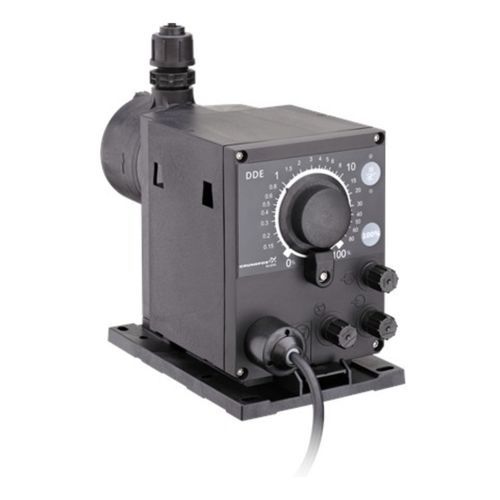

Diaphragm pump DDE series

waterwastewaterstepper motor-driven

SMART Digital diaphragm dosing pump with internal stepper motor drive. Economic Digital Dosing even for basic dosing applications (Digital Dosing Essential). The SMART Digital DDE is a compact positive-displacement diaphragm dosing pump with variable-speed drive (PMS motor) and intelligent control electronics with minimum energy consumption. The SMART Digital Dosing series operates at full stroke length to ensure optimum accuracy, priming and suction, even for degassing liquids. The duration of each outlet stroke varies according to the capacity set, resulting in optimum smooth and continuous outlet flow. The mounting plate allows quick installation and service. The control cube can be turned easily into front, left or right position. The dosing flow can be adjusted by means of an adjustment knob on a logarithmical scale from 0.1-100 %. The control elements are protected by a transparent cover. The dosing head is composed of: Long service life and universal, chemically-resistant full-double PTFE diaphragm. Ball valves for highest dosing accuracy. deaeration valve for easy startup. Operating modes: Manual dosing from 0.1 to 100 %.
