Diaphragm pump DDI
for biofuelswaterfor chemicals

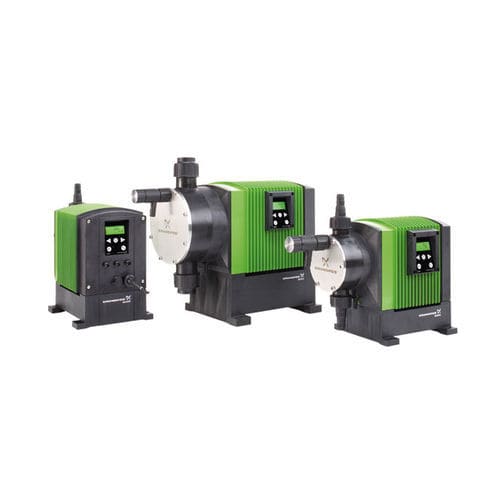

Diaphragm pump - DDI - GRUNDFOS - for biofuels / water / for chemicals
Diaphragm pump - DDI - GRUNDFOS - for biofuels / water / for chemicals
Diaphragm pump - DDI - GRUNDFOS - for biofuels / water / for chemicals - image - 2
Diaphragm pump - DDI - GRUNDFOS - for biofuels / water / for chemicals - image - 3
Diaphragm pump - DDI - GRUNDFOS - for biofuels / water / for chemicals - image - 4
Diaphragm pump - DDI - GRUNDFOS - for biofuels / water / for chemicals - image - 5
Diaphragm pump - DDI - GRUNDFOS - for biofuels / water / for chemicals - image - 6
Diaphragm pump - DDI - GRUNDFOS - for biofuels / water / for chemicals - image - 7
Diaphragm pump - DDI - GRUNDFOS - for biofuels / water / for chemicals - image - 8
Diaphragm pump - DDI - GRUNDFOS - for biofuels / water / for chemicals - image - 9
Diaphragm pump - DDI - GRUNDFOS - for biofuels / water / for chemicals - image - 10
Diaphragm pump - DDI - GRUNDFOS - for biofuels / water / for chemicals - image - 11
Add to favorites
Compare this product

Characteristics

Technology
diaphragm
Fluid
water, for chemicals, for biofuels
Operation
stepper motor-driven
Mobility
stationary, mobile
Domain
industrial, chemical, for water treatment, for the food and beverage industry, for the paper industry, for the textile industry
Applications
treatment, suction, discharge, high-pressure, process, cooling, handling, dosing, cleaning, distribution, washing
Material
PVDF
Fluid specification
for viscous fluids
Voltage
240 V
Protection level
IP65
Other characteristics
electronic, digital
Flow

Max.: 60 l/h
(15.85032 us gal/h)

Min.: 0 l/h
(0 us gal/h)

Pressure

Max.: 10 bar
(145.038 psi)

Min.: 0 bar
(0 psi)

Head

Max.: 10 m
(32'09" )

Min.: 0 m
(0'00" )

Power

0.05 kW
(0.07 hp)

Fluid temperature

20 °C
(68 °F)

Input diameter

16 mm
(0.63 in)

Output diameter

16 mm
(0.63 in)

Length

338 mm
(13.307 in)

Width

137 mm
(5.39 in)

Height

252 mm
(9.92 in)

Description

Digital diaphragm dosing pumps with internal step motor driv Technical: Approvals: - - CE Materials: Valve ball: - - PTFE Gasket: - - PTFE Electrical data: Power input - P1: - - 0.05 kW Mains frequency: - - 50 / 60 Hz Rated voltage: - - 1 x 100-240 V 50/60 Hz V Enclosure class (IEC 34-5): - - IP 65 Length of cable: - - 1.5 m Type of cable plug: - - Schuko Controls: Control variant: - - AR Level control: - - Input for dual-level sensor or external start/stop
