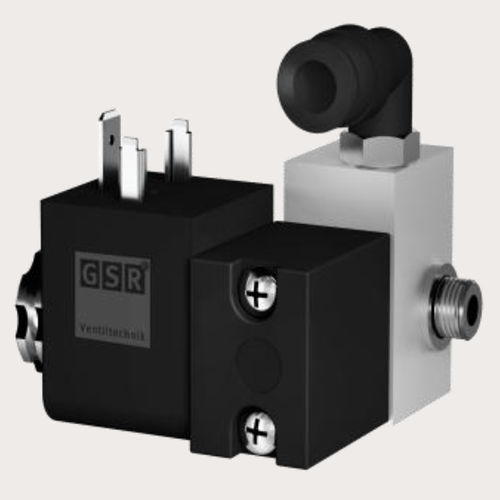

Piston solenoid valve 2/131direct-operated3-wayNC
Add to favorites
Compare this product
Characteristics
- Control
- direct-operated
- Ports/positions
- 3-way
- Function
- NC
- Medium
- water, for gas
- Body
- threaded, brass, aluminum, IP65
- Other characteristics
- piston
- DN
0.125 in
- Voltage
Max.: 230 V
Min.: 12 V
- Temperature
Max.: 80 °C
(176 °F)Min.: -10 °C
(14 °F)- Pressure
Max.: 10 bar
(145 psi)Min.: 0 bar
(0 psi)
Description
Description
3/2-way solenoid valve
Impulse
without differential pressure
Body
Brass
Direct operated piston design. No differential pressure is necessary for operation. When energized, the valve seat is opened directly.In standard (NC) the valve closes with spring power.
TECHNICAL SPECIFICATIONS
Type of control: Direct operated
Design: Piston design
Connection: Threaded G1/8
DIN ISO 228/1 (BSP)
Installation: Preferable with actuator upright
Pressure: 0 -10 bar (see table on page 2)
Medium: Clean, neutral, gaseous and liquid media
max. viscosity: 22 mm²/s
Temperature range: Medium: -10 °C up to+80 °C
Ambient: -10 °C up to+35 °C
Body material: Aluminum 3.2315
Metallic inner parts: Stainless steel
Sealing: FKM
Supply voltage: AC~ 24V, 110V, 230V
DC= 12V, 24V
Other supply voltages on request
