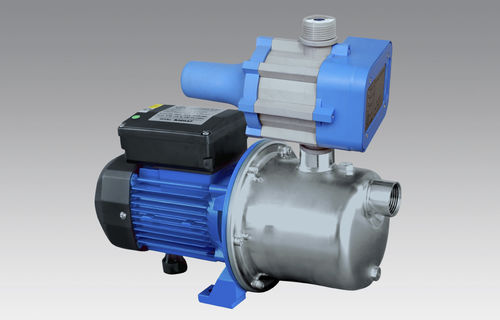

Impeller pump ABJZ-BKwaterwith electric motorself-priming
Add to favorites
Compare this product
Characteristics
- Technology
- impeller
- Fluid
- water
- Operation
- with electric motor
- Priming
- self-priming
- Mobility
- stationary, mobile
- Domain
- industrial
- Applications
- for control
- Material
- stainless steel
- Voltage
- 220 V
- Protection level
- IP55
- Flow
Max.: 3 m³/h
(105.944 ft³/h)Min.: 1.5 m³/h
(52.972 ft³/h)- Pressure
0.6 MPa
- Head
Max.: 30 m
(98'05" )Min.: 20 m
(65'07" )- Power
Max.: 1 kW
(1.36 hp)Min.: 0.37 kW
(0.5 hp)- Fluid temperature
Max.: 50 °C
(122 °F)Min.: 0 °C
(32 °F)- Length
Max.: 417 mm
(16 in)Min.: 358 mm
(14 in)- Width
Max.: 239 mm
(9.41 in)Min.: 225 mm
(8.86 in)- Height
Max.: 382 mm
(15.04 in)Min.: 348 mm
(13.7 in)- Weight
Max.: 14 kg
(30.86 lb)Min.: 5.8 kg
(12.79 lb)
Description
Thermal protector：single phase
Insulation：F
Max suction：9m
Operation and application：
Auto-control stainless steel jet pump consist of a self priming jet pump and auto-controller to control the pump automatically through auto controller.If the pump is under situation such as waterless water high voltage,pipe blockage etc., Auto controller receives the signal and cut off power to protect the pump effectively. When pump is running, the controller maintains a constant pressure to minimize water hammer effect.
