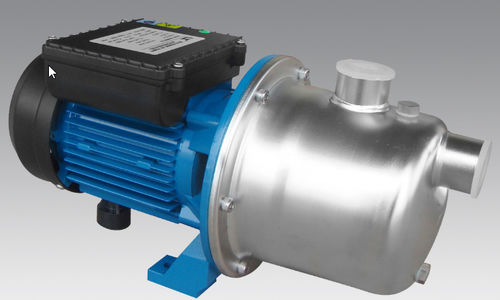

Water pump BJZ-Bwith electric motorself-primingimpeller
Add to favorites
Compare this product
Characteristics
- Fluid
- water
- Operation
- with electric motor
- Priming
- self-priming
- Technology
- impeller
- Mobility
- stationary, mobile
- Domain
- industrial
- Voltage
- 220 V
- Protection level
- IP55
- Flow
Max.: 3 m³/h
(105.944 ft³/h)Min.: 1.5 m³/h
(52.972 ft³/h)- Pressure
0.8 MPa
- Head
Max.: 30 m
(98'05" )Min.: 20 m
(65'07" )- Power
Max.: 1 kW
(1.36 hp)Min.: 0.37 kW
(0.5 hp)- Fluid temperature
Max.: 50 °C
(122 °F)Min.: 0 °C
(32 °F)- Length
357 mm, 358 mm
(14 in, 14 in)- Width
170 mm, 184 mm
(6.69 in, 7.24 in)- Height
177 mm, 200 mm
(6.97 in, 7.87 in)- Weight
7 kg, 9 kg, 10 kg
(15.43 lb, 19.84 lb, 22.05 lb)
Description
Thermal protector：single phase
Insulation：F
Max suction：9m
