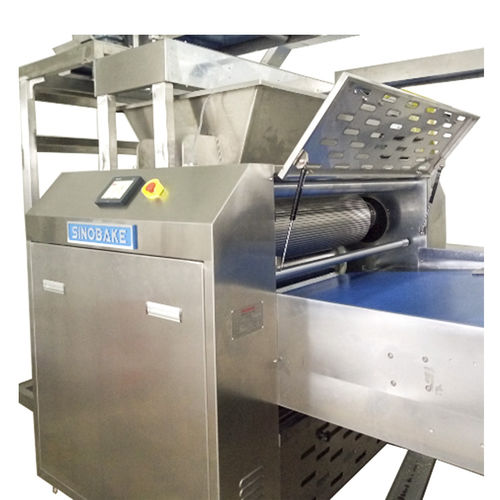

Dough sheeter SZ

Designed for feeding and primary sheeting hard biscuit dough. Parameters: 1. Feeding trough roll diameter: Ø300, the surface is treated with special anti-rust and anti-staining, surface hardness: HRC58-62 2. Diameter of the lower roller: Ø300, the surface is treated with special anti-rust and anti-staining, surface hardness: HRC58-62 3. Working width: 950mm (1150mm), electric adjustment of the thickness of the dough 4. Dimensions: 1100X2120X1800 (1100X2320X1800) 5. The side plate is made of Q235 carbon steel material, and the thickness after processing is 28mm, The surface is plated with hard chrome, the surface hardness is HRC58-62 6. The conveyor frame plate uses Q235 carbon steel material, the thickness after processing is 15mm, The surface is plated with hard chrome, the hardness is HRC58-62 7. The pallet uses 304 stainless steel 8. The roller and the conveyor belt are controlled by independent motors, which is easy to adjust 9. Conveying active roller diameter: Ø160,the surface is covered with rubber, rubber material is non-toxic and oil-resistant material 10. The conveyor belt uses European imported PU belt with a thickness of 1.3mm, 11. The conveyor belt is pneumatically tensioned and the anti-deflection guide is used to prevent deviation, and the cylinder is made of Korean famous brand; 12. The scraper uses a 2mm thick blade, which has the characteristics of cleaning and not hurting the roll 13. The enclosure is made of 1.5mm304 stainless steel, and the front and rear enclosures use pneumatic support rods 14. The surface of roller, transition knife, etc. are plated with hard chrome 15. Transition mode: roller flat transition
