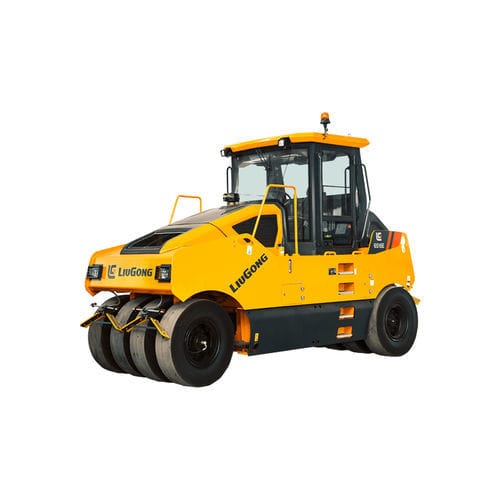

Pneumatic tired road roller 6516E

Overview
Operating weight: 16,000 kg
Rated power: 97 kW (130 hp)
Compacting width: 2,250 mm

Description

• Compaction is achieved by the kneading and rolling effect of the tyres: vertical pressure combined with horizontal forces produces a uniform surface finish suitable for asphalt and road-base layers.
• Patented Tire Suspension System with a tiltable front shaft allows the four front wheels to swing for improved ground contact on uneven surfaces, enhancing compaction consistency and reducing the risk of roller tilt.

Key features

• Operating weight range: 11,000–16,000 kg
• Cummins 4BTAA3.9-C130 engine, rated 97 kW @ 2,200 rpm
• Traveling speed 0–15 km/h; working speed 0–7 km/h
• Theoretical gradeability: 20%
• Tire configuration: Front 4 / Rear 5; Tire type: 11.00-20-16PR

Product Specifications

• Max. Operating Mass: 16,000 kg
• Min. Operating Mass: 11,000 kg
• Single Tire Load: 1,778 kg
• Model (engine): Cummins 4BTAA3.9-C130
• Rated Power: 97 kW (130 hp / 132 ps) @ 2,200 rpm
• Traveling Speed: 0–15 km/h
• Working Speed: 0–7 km/h
• Theoretical Gradeability: 20%
• Wheelbase: 3,600 mm
• Overall Length: 4,800 mm
• Overall Width: 2,310 mm
• Overall Height: 3,270 mm
• Compacting Width: 2,250 mm
• Overlapping of Front & Rear Tire: 45 mm
• Tire Type: 11.00-20-16PR
• Tire Numbers: Front 4 / Rear 5
• Min. Ground Clearance: 290 mm
• Min. Outside Turning Radius: 8,000 mm
• Emission Regulation: Stage II
