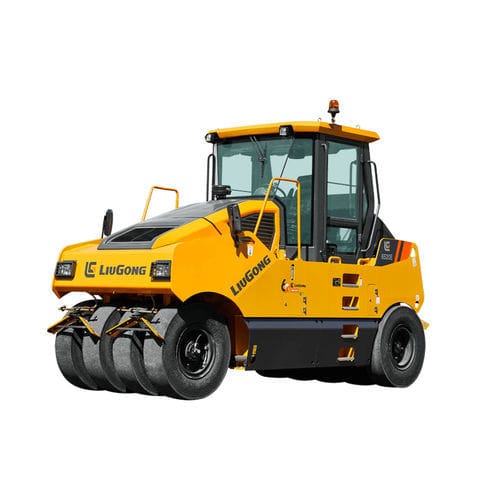

Pneumatic tired road roller 6520E

Pneumatic tired road roller - 6520E - Guangxi Liugong Machinery Co., Ltd.
Pneumatic tired road roller - 6520E - Guangxi Liugong Machinery Co., Ltd.
Pneumatic tired road roller - 6520E - Guangxi Liugong Machinery Co., Ltd. - image - 2
Add to favorites
Compare this product

Characteristics

Type
pneumatic tired
Operating weight

Min.: 11 t
(12.1 us ton)

Max.: 20 t
(22 us ton)

Motor power

97 kW
(131.88 hp)

Description

Key specifications
  • Operating weight: 20,000 kg
  • Rated power: 97 kW (130 hp / 132 ps)
  • Single tire load: 2,222 kg
  • Tire type: 11.00-20-16PR or 11.00-20-18PR
  • Compacting width: 2,250 mm


Description
  • Top-quality compaction is achieved by the kneading and rolling effect of the wheels: vertical pressure combined with horizontal forces produces an even, uniform surface finish.
  • On uneven surfaces the patented Tire Suspension System with a tiltable front shaft allows the four front wheels to swing up and down, improving individual wheel ground contact. This optimises compaction and enhances operator safety by reducing the risk of roller tilt-over.


Characteristics / Technical specifications
  • Max. Operating Mass: 20,000 kg
  • Single Tire Load: 2,222 kg
  • Engine Model: Cummins QSB4.5-C130
  • Rated Power: 97 kW (130 hp / 132 ps) @ 2,200 rpm
  • Traveling Speed: 0-15 km/h
  • Theoretical Gradeability: 20%
  • Wheelbase: 3,600 mm
  • Tire Type: 11.00-20-16PR or 11.00-20-18PR
  • Overall Length: 4,800 mm
  • Overall Height: 3,270 mm
  • Min. Operating Mass: 11,000 kg
  • Overlapping of Front & Rear Tire: 45 mm
  • Emission Regulation: Stage III
  • Working Speed: 0-7 km/h
  • Compacting Width: 2,250 mm
  • Min. Ground Clearance: 290 mm
  • Min. Outside Turning Radius: 8,000 mm
  • Tire Numbers: Front 4, Rear 5
  • Overall Width: 2,310 mm
