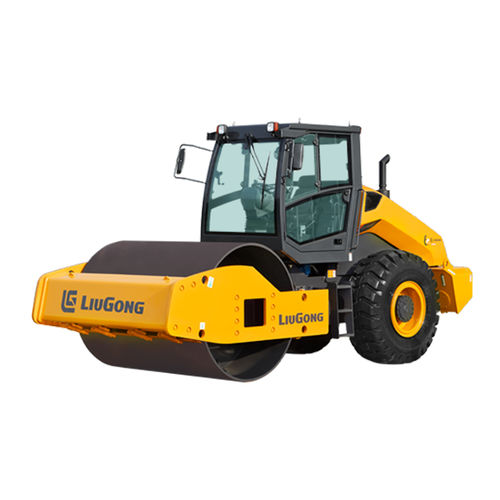

Vibrating road roller 6114E

Overview

• Flexible, non-impact vibratory system extends vibratory bearing life beyond 5,000 hours, increasing productivity and reducing part wear.
• Larger-diameter drum with consistent amplitude and uniformity delivers optimum compaction force with fewer passes.
• Patented internal drum cooling maintains balanced temperatures around 90° C (≈20° below industry average), improving component life and reducing maintenance.

Key specifications
Operating weight: 14,000 kg
Rated power: 103 kW
Vibration frequency: 30 Hz


Industries

• Road
• Mining

Technical specifications
Operating Mass: 14,000 kg
Mass On Drive Axle: 7,000 kg
Model: Shangchai SC4H140.2G2
Rated Power: 103 kW (140 hp) @ 2000 rpm
Nominal Amplitude: 2.0/1.2 mm
Drum Diameter: 1555 mm
2nd Maximum Speed, fwd: 5.2 km/h
Theoretical Gradeability: 30%
Wheelbase: 2950 mm
Overall Length: 6000 mm
Overall Height: 3050 mm
Mass On Vibrating Drum: 7,000 kg
Front Drum Static Linear Load: 329 N/cm
Emission Regulation: Stage II
Vibration Frequency: 30 Hz
Centrifugal Force: 280/170 kN
1st Maximum Speed, fwd: 2.7 km/h
3rd Maximum Speed, fwd: 11 km/h
Min. Ground Clearance: 450 mm
Min. Outside Turning Radius: 6500 mm
Overall Width: 2280 mm


Additional technical characteristics

• Flexible non-impact exciter reduces shock on start/stop and minimizes risk of eccentric mass failure.
• Independent exciter chamber and active lubrication reduce maintenance and increase drum reliability.
• ECO mode enables dual-engine output for fuel savings of over 12%.
• Imported hydraulic pump and vibration motor for high stability and long service life.
• Optimized matching delivers higher excitation force for the same tonnage and improved working efficiency.
• Inverted engine layout for easier maintenance and improved rear visibility.
