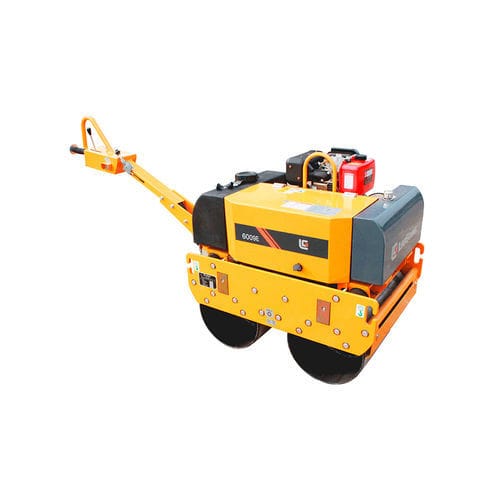

Tandem road roller 6009E
vibrating

Tandem road roller - 6009E - Guangxi Liugong Machinery Co., Ltd. - vibrating
Tandem road roller - 6009E - Guangxi Liugong Machinery Co., Ltd. - vibrating
Tandem road roller - 6009E - Guangxi Liugong Machinery Co., Ltd. - vibrating - image - 2
Add to favorites
Compare this product

Characteristics

Type
vibrating, tandem
Operating weight

860 kg
(1,896 lb)

Motor power

Min.: 5.3 kW
(7.21 hp)

Max.: 7.5 kW
(10.2 hp)

Description

Overview
  • Designed for asphalt and soil compaction, it adopts hydrostatic drive technology, providing little pressure shock and high reliability; simplified operation reduces operator work intensity and improves efficiency.
  • Optimized operating mechanism and generous drum spacing enhance operator comfort and accessibility.


Key specifications
  • Operating weight: 860 kg
  • Rated power: 5.3 kW
  • Vibration frequency: 55 Hz


Detailed specifications
  • Operating mass: 860 kg
  • Operating weight: 860 kg
  • Mass on rear axle: 460 kg
  • Mass on front drum: 400 kg
  • Rear drum static linear load: 60 N/cm
  • Front drum static linear load: 52 N/cm
  • Drum width: 750 mm
  • Drum diameter: 426 mm
  • Vibration frequency: 55 Hz
  • Nominal amplitude: 0.35 mm
  • Centrifugal force: 30 kN
  • Theoretical gradeability: 30%/35%
  • Model: KM192FR
  • Rated power (engine): 7.5 kW (10.1 hp) @ 3600 rpm
  • Rated power (vibration system): 5.3 kW
  • 1st maximum speed, fwd: 0-3.6 km/h
  • Min. ground clearance: 258 mm
  • Wheelbase: 590 mm
  • Overall length: 2,375 mm
  • Overall width: 818 mm
  • Overall height: 1,178 mm
  • Emission regulation: Stage IV


Applications and benefits
  • Suitable for small-to-medium asphalt and soil compaction tasks such as road repair, parking areas and utility trenches.
  • Hydrostatic drive reduces pressure shocks and simplifies operation, enabling precise compaction control.
  • Compact dimensions and drum configuration improve maneuverability on constrained sites.
