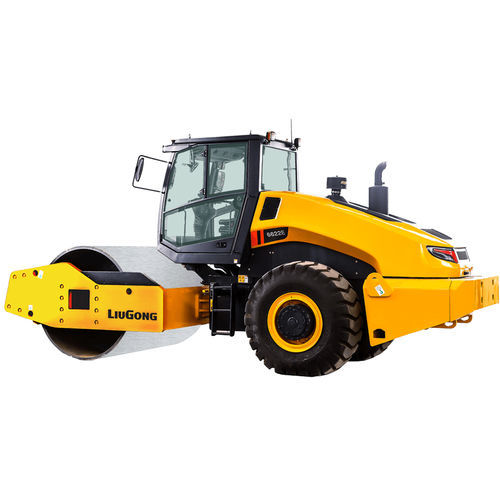

Vibrating road roller 6622E

Vibrating road roller - 6622E - Guangxi Liugong Machinery Co., Ltd.
Vibrating road roller - 6622E - Guangxi Liugong Machinery Co., Ltd.
Vibrating road roller - 6622E - Guangxi Liugong Machinery Co., Ltd. - image - 2
Add to favorites
Compare this product

Characteristics

Type
vibrating
Operating weight

22 t
(24.3 us ton)

Motor power

140 kW
(190.35 hp)

Description

Key specifications
  • Operating weight: 22,000 kg
  • Rated power: 140 kW (188 hp / 190 ps) @ 2,200 rpm
  • Vibration frequency: 28/32 Hz
  • Drum diameter: 1600 mm
  • Centrifugal force: 410/345 kN


Description
  • Flexible non‑impact excitation system extends vibratory bearing life beyond 10,000 hours, reducing component wear and maintenance downtime.
  • Dual‑frequency and dual‑amplitude vibratory modes provide adjustable compaction force for variable materials and layer thicknesses.
  • The larger 1600 mm diameter drum with consistent amplitude distribution ensures uniform compaction and fewer passes to reach target density.
  • ECO fuel‑saving mode with dual engine output reduces overall fuel consumption by over 12%; inverted engine layout and accessible service points simplify maintenance.


Applications
  • Road construction and resurfacing
  • Port and quay pavement compaction
  • Airfield runway preparation
  • Municipal and landscaping works
  • Agricultural and forestry track preparation


Technical specifications
  • Operating Mass: 22,000 kg
  • Mass On Drive Axle: 8,200 kg
  • Engine model: Shangchai SC7H190.2G2
  • Rated Power: 140 kW (188 hp / 190 ps) @ 2,200 rpm
  • Nominal Amplitude: 2.0 / 1.2 mm
  • Drum Diameter: 1600 mm
  • Vibration Frequency: 28 / 32 Hz
  • Centrifugal Force: 410 / 345 kN
  • Max speeds (fwd): 1st 3.8 km/h, 2nd 5 km/h, 3rd 5.8 km/h, 4th 10 km/h
  • Min. Ground Clearance: 440 mm
  • Min. Outside Turning Radius: 7,000 mm
  • Overall Width: 2,340 mm
  • Mass On Vibrating Drum: 13,800 kg
  • Front Drum Static Linear Load: 635 N/cm
  • Emission Regulation: Stage II
  • Theoretical Gradeability: 52%
  • Wheelbase: 3,250 mm
  • Overall Length: 6,680 mm
  • Overall Height: 3,150 mm
