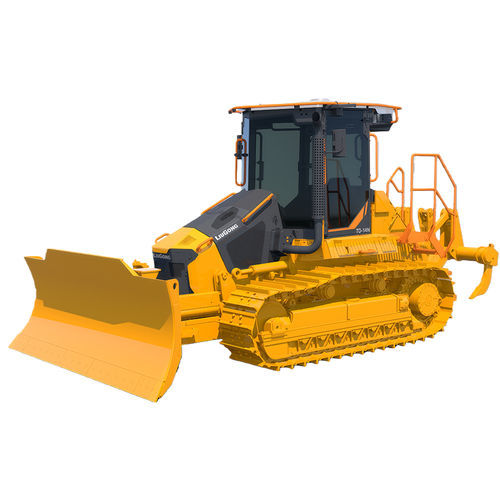

Crawler bulldozer TD-14N

for constructionforestry

Overview

• Built on the award-winning design of the TD-16N, the TD-14N crawler dozer offers improved operator visibility, enhanced comfort and reliable earthmoving performance.

Key specifications

• Operating weight: 16,140 kg
• Engine power: 119 kW
• Blade capacity: 3.4 m³

Applications

• Road construction
• Forestry
• General earthmoving

Product specifications
Machine Weight: 16,140 kg
Blade Capacity: 3.4 m³
Blade Cutting Depth: 520 mm
Engine Displacement: 5.9 L
Number of Rollers (Per Side): 7
Number of Track Shoes (Per Side): 40
Maximum Travel Speed, rev: 10 km/h
Rated Power: 119 kW
Blade Lift Height: 1,005 mm
Ground Pressure: 47 kPa
Track Shoe Width: 560 mm
Number of Idlers (Per Side): 2
Maximum Travel Speed, fwd: 10 km/h

Technical specifications

• Machine Weight: 16,140 kg
• Operating weight: 16,140 kg
• Rated Power / Engine power: 119 kW
• Engine Displacement: 5.9 L
• Blade Capacity: 3.4 m³
• Blade Cutting Depth: 520 mm
• Blade Lift Height: 1,005 mm
• Ground Pressure: 47 kPa
• Track Shoe Width: 560 mm
• Number of Track Shoes (Per Side): 40
• Number of Rollers (Per Side): 7
• Number of Idlers (Per Side): 2
• Maximum Travel Speed (rev/fwd): 10 km/h
