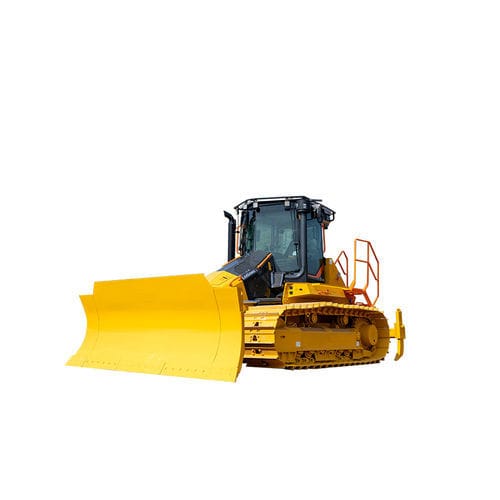

Crawler bulldozer TD-16N

for agriculture

Product Overview

• Breaking through conventional industry design norms, the TD-16N introduces a revised platform focused on operator visibility, comfort, operational performance, safety and long-term reliability.

Key Specifications

• Operating weight: 20,670 kg
• Engine power: 129 kW
• Blade capacity: 4.4 m³

Applications

• Ports
• Agriculture

Specifications Table
Machine Weight: 20,670 kg
Blade Capacity: 4.4 m³
Blade Cutting Depth: 600 mm
Engine Displacement: 6.7 L
Number of Rollers (Per Side): 7
Number of Track Shoes (Per Side): 44
Maximum Travel Speed, rev: 10.5 km/h
Rated Power: 129 kW
Blade Lift Height: 1,100 mm
Ground Pressure: 36.6 kPa
Track Shoe Width: 760 mm
Number of Idlers (Per Side): 2
Maximum Travel Speed, fwd: 10.5 km/h

Technical specifications

• Operating weight: 20,670 kg
• Machine Weight: 20,670 kg
• Rated Power / Engine power: 129 kW
• Engine Displacement: 6.7 L
• Blade Capacity: 4.4 m³
• Blade Cutting Depth: 600 mm
• Blade Lift Height: 1,100 mm
• Number of Rollers (Per Side): 7
• Number of Idlers (Per Side): 2
• Number of Track Shoes (Per Side): 44
• Track Shoe Width: 760 mm
• Ground Pressure: 36.6 kPa
• Maximum Travel Speed (rev/fwd): 10.5 km/h
