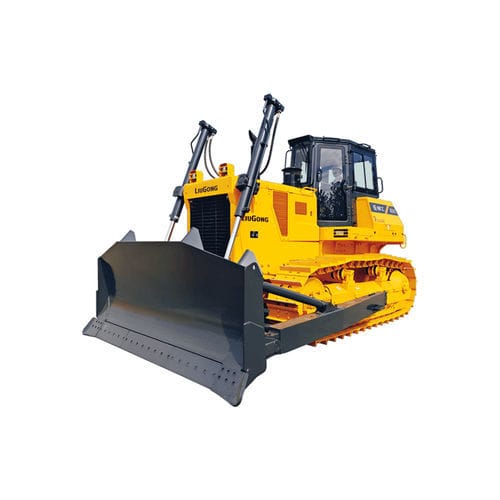

Crawler bulldozer B230
mining and quarryingfor construction

Crawler bulldozer - B230 - Guangxi Liugong Machinery Co., Ltd. - mining and quarrying / for construction
Crawler bulldozer - B230 - Guangxi Liugong Machinery Co., Ltd. - mining and quarrying / for construction
Add to favorites
Compare this product

Characteristics

Locomotion
crawler
Applications
for construction, mining and quarrying
Operating weight

24,540 kg
(54,101.4 lb)

Motor power

179 kW
(243.37 hp)

Description

Overview

  • The B230C bulldozer is powered by a Cummins engine with rated net power 169 kW and maximum engine power 179 kW (240 hp). A large 480 L fuel tank extends operating time. A larger, more efficient cooling fan and a redesigned radiator improve cooling performance.
  • The front-mounted working cylinder arrangement enhances load-carrying performance, providing more uniform and secure load transfer from the frame and front hood.
  • An ultra-large rear compartment improves access for steering and brake maintenance. Serviceability is further enhanced by optional automatic greasing and optional auto track tensioning.


Applications

  • Mining
  • General / Construction


Key specifications (excerpt)

  • Operating weight: 24,540 kg
  • Engine power: 179 kW (240 hp)
  • Rated net power: 169 kW (Cummins specification)
  • Fuel tank capacity: 480 L
  • Blade capacity: 7.8 m³
  • Blade type: Straight
  • Blade options: Straight; Angle; Semi-U; Full-U; Landfill blade
  • Lift above ground: 1,210 mm
  • Blade tilt: 735 mm
  • Depth below ground: 540 mm
  • Blade angle: 8°
  • Max travel speed (forward): 12 km/h
  • Max travel speed (reverse): 13.8 km/h
  • Number of speeds (forward): 3
  • Number of speeds (reverse): 3
  • Referenced shoe width: 560 mm
  • Ground pressure: 76 kPa
  • Transport length: 5,500 mm
  • Transport width: 3,725 mm
  • Transport height: 3,380 mm
  • Emission standard: Stage I / Stage III
  • Engine model/brand: Cummins
  • Ripper options: Single-shank ripper; Three-shank ripper
  • Cooling: larger cooling fan and redesigned radiator for improved efficiency
  • Serviceability: ultra-large rear space for steering and brake maintenance; optional automatic greasing; optional auto track tensioning


Technical specifications

  • Operating weight: 24,540 kg
  • Engine power: 179 kW (240 hp)
  • Rated net power: 169 kW
  • Fuel tank capacity: 480 L
  • Blade capacity: 7.8 m³
  • Blade type and options: Straight; Angle; Semi-U; Full-U; Landfill blade
  • Lift above ground: 1,210 mm
  • Blade tilt: 735 mm
  • Depth below ground: 540 mm
  • Blade angle: 8°
  • Max travel speed (fwd/rev): 12 km/h / 13.8 km/h
  • Speeds (fwd/rev): 3 / 3
  • Referenced shoe width: 560 mm
  • Ground pressure: 76 kPa
  • Transport dimensions (L×W×H): 5,500 × 3,725 × 3,380 mm
  • Emission: Stage I / Stage III
  • Engine: Cummins
  • Ripper: Single-shank or three-shank options
  • Cooling system: larger fan and redesigned radiator
  • Maintenance: large rear access; optional auto greasing and auto track tensioning
