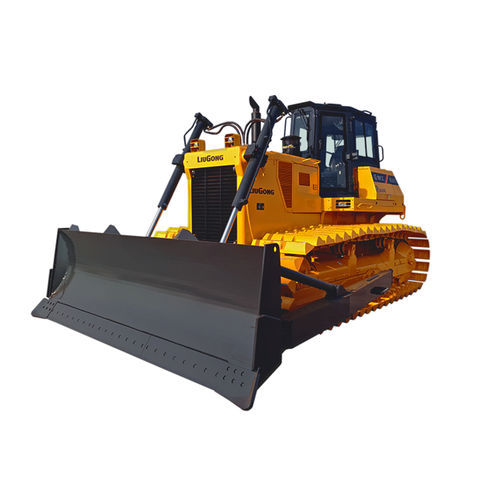

Crawler bulldozer B230S

landfillfor construction

Overview

• Low ground pressure undercarriage enables the B230S to operate on soft waste and landfill surfaces with reduced soil penetration.
• Large-capacity landfill blade (5.2 m³) maximizes material handling and spreading efficiency on disposal sites.
• 560 mm track shoe width and eight rollers per side provide stability and flotation across uneven terrain.
• 179 kW rated power and a 14 L engine displacement deliver the tractive effort required for heavy earthmoving and waste compaction tasks.

Industries

• Landfill & waste management
• Road construction and maintenance
• Civil engineering and earthmoving
• General heavy construction

Key specifications (table)
Machine Weight: 26,400 kg
Blade Capacity: 5.2 m³
Blade Digging Depth: 600 mm
Engine Displacement: 14 L
Number of Rollers (Per Side): 8
Number of Track Shoes (Per Side): 45
Maximum Travel Speed (reverse): 13.8 km/h
Maximum Travel Speed (forward): 12.0 km/h
Rated Power: 179 kW
Blade Lift Height: 1,270 mm
Ground Pressure: 36.3 kPa
Track Shoe Width: 560 mm
Number of Idlers (Per Side): 2


Technical specifications

• Operating weight: 26,400 kg
• Engine power / Rated Power: 179 kW
• Blade capacity: 5.2 m³
• Blade digging depth: 600 mm
• Blade lift height: 1,270 mm
• Engine displacement: 14 L
• Number of rollers (per side): 8
• Number of idlers (per side): 2
• Number of track shoes (per side): 45
• Track shoe width: 560 mm
• Ground pressure: 36.3 kPa
• Maximum travel speed (reverse): 13.8 km/h
• Maximum travel speed (forward): 12.0 km/h
