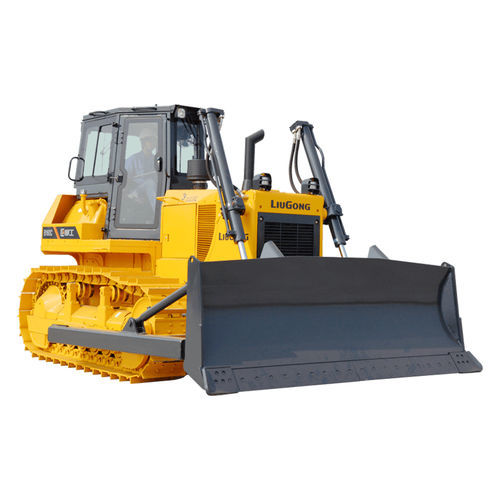

Tracked bulldozer B160C

for mining applications

Overview

• The machine integrates a matched power transmission system to ensure efficient operation and dependable load distribution.
• Fuel tank located on the left side and an enlarged rear compartment provide simplified access for steering and brake maintenance.
• Front-mounted working cylinder enhances load-carrying performance and distributes forces through the frame and front hood to reduce transmission stress.

Key specifications

• Operating weight: 17,000 kg
• Engine power: 131 kW (176 hp)
• Blade capacity: 4.5 m³

Industry

• Mining
• General

Technical data
Operating weight: 17,000 kg
Max travel speed, fwd: 9.72 km/h
No. of speeds, fwd: 3
Referenced shoe width: 510 mm
Blade type: Straight
Depth below ground: 540 mm
Blade angle: 7 °
Transport length: 5,180 mm
Transport height: 3,200 mm
Emission: Stage II / Stage III
Hydraulic winch options: Yes
Engine power: 131 kW (176hp)
Max travel speed, rev: 12.64 km/h
No. of speeds, rev: 3
Ground pressure: 67 kPa
Blade capacity: 4.5 m³
Lift above ground: 1,076 mm
Blade tilt: 440/470 mm
Transport width: 3,422 mm
Model: Weichai
Ripper options: Three-shank ripper
Blade options: Straight; Angle; Full-U; Landfill blade

Technical specifications

• Operating weight: 17,000 kg
• Engine power: 131 kW (176hp)
• Blade capacity: 4.5 m³
• Max travel speed (fwd): 9.72 km/h
• Max travel speed (rev): 12.64 km/h
• No. of speeds (fwd): 3
• No. of speeds (rev): 3
• Referenced shoe width: 510 mm
• Ground pressure: 67 kPa
• Lift above ground: 1,076 mm
• Blade tilt: 440/470 mm
• Blade type: Straight
• Blade options: Straight; Angle; Full-U; Landfill blade
• Ripper options: Three-shank ripper
• Depth below ground: 540 mm
• Blade angle: 7 °
• Transport length: 5,180 mm
• Transport height: 3,200 mm
• Transport width: 3,422 mm
• Emission: Stage II / Stage III
• Hydraulic winch options: Yes
• Engine model: Weichai
