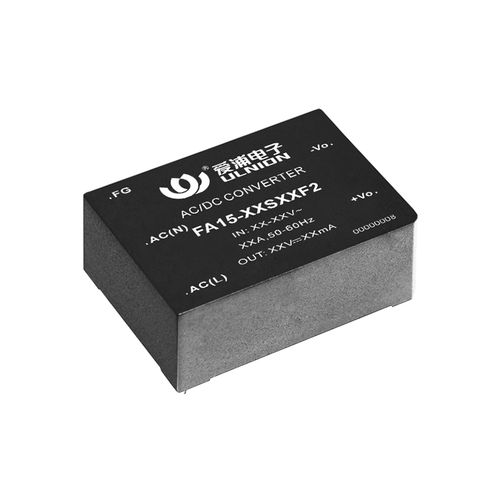

DC AC/DC converter FA15-220SXXF2switchingAC power supply
Add to favorites
Compare this product
Characteristics
- Other characteristics
- switching, DC, AC power supply
- Power
10 W, 15 W
- Voltage
5 V, 12 V, 15 V, 18 V, 4,000 V
- Primary current
Min.: 272 mA
Max.: 3,000 mA
Description
Input voltage
85-265Vac/120-380Vdc
Output
3.3V, 5V, 9V,12V, 15V, 18V, 24V, 28V, 48V, 55V
Dimension
62.0x45.0x22.5mm
No-load power consumption≤0.1W
Switching frequency: 65KHz
Protection: Short Circuit, Over Current, Over Voltage, Over Temperature
Meet IEC60950/UL60950/EN60950
Confirm to CE、RoHS
Plastic case, conform to UL94V-0 Class
Catalogs
FA15-220SXXF2 Series
7 Pages
