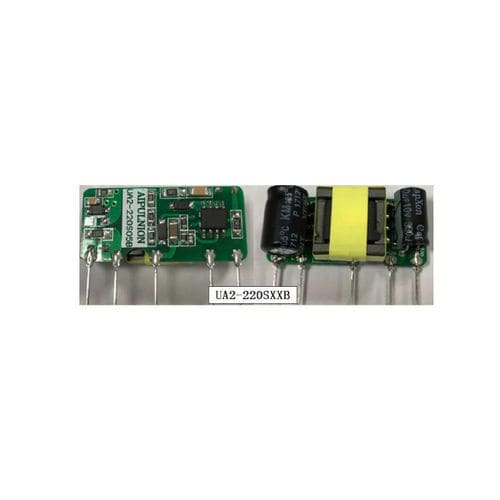

DC AC/DC converter UA2-220SXXBAC power supply
Add to favorites
Compare this product
Characteristics
- Other characteristics
- DC, AC power supply
- Power
2 W, 2.5 W
- Voltage
2,500 V
- Primary current
Min.: 104 mA
Max.: 600 mA
Description
Input voltage
85-265VAC/90-380VDC
Output
3.3V, 5V, 6V, 12V, 13V, 15V, 24V
Dimension
32x15x12mm，30x17x10mm
Typical Features
◆Wide input voltage range:85 265VAC/90 380VDC
◆No load power consumption≤0 .3 W
◆Transfer efficiency ( typ. 78%)
◆Switching Frequency:65KHz
◆Protections: short circuit, over current, over voltage
◆Conform to IEC60950/UL60950/EN60950
◆Meet CE, RoHS
◆Ultra small bare board, industrial level design
◆PCB mounting
Catalogs
UA2-220SXXB series
7 Pages
