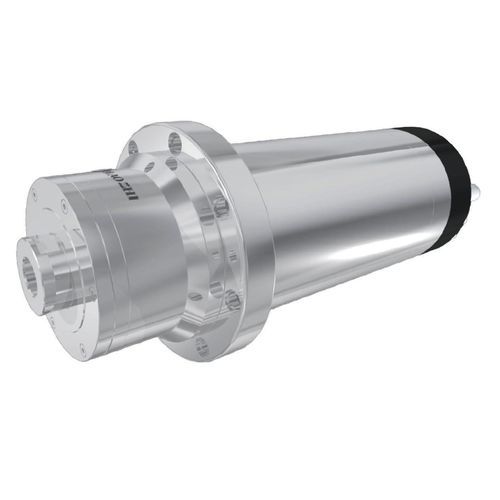

Internal grinding spindle DGZM-12042/15-DFWQS

motorizedwater-cooledhigh-speed

Overview
A front flange changes how spindle loads are transferred into the machine structure. The DGZM-12042/15-DFWQS combines this flange-mount arrangement with continuous 42,000 rpm operation and 15 kW output for rigid, high-speed internal grinding integration.

Key data (summary)
Diameter: Φ120 mm
Maximum speed: 42,000 rpm
Rated power (S1): 15 kW
Rated torque (S1): 3.5 N·m

Technical data
Model: DGZM-12042/15-DFWQS
Diameter: Φ120 mm
Maximum speed: 42,000 rpm
Maximum frequency: 1,400 Hz
Rated speed: 42,000 rpm
Rated frequency: 1,400 Hz
Rated voltage: 380 V
Rated current: 31 A
Rated power: 15.0 kW
Rated torque: 3.5 N·m
Motor type: Asynchronous (induction) motor
Bearing type: Ceramic ball bearings
Cooling method: Water cooling
Cooling flow rate: 4.6 L/min (at 0.25 MPa)
Motor temperature sensor: KTY
Vibration velocity: <0.8 mm/s
Weight: 24 ± 1 kg
Tool interface: Straight hole and screw thread Φ23-M22×1.5

Features

• Flange-mount configuration to transfer spindle loads into the machine structure
• Continuous high-speed capability up to 42,000 rpm
• 15 kW rated power for rigid internal grinding applications
• Ceramic ball bearings for stability at high speed
• Water-cooled motor with defined cooling flow

Applications

• High-speed internal grinding requiring rigid power transmission
• Integration into grinding machines where flange mounting is required

Technical specifications

• Model: DGZM-12042/15-DFWQS
• Diameter: Φ120 mm
• Maximum / rated speed: 42,000 rpm
• Maximum / rated frequency: 1,400 Hz
• Rated voltage / current: 380 V / 31 A
• Rated power: 15.0 kW
• Rated torque: 3.5 N·m
• Motor type: Asynchronous (induction)
• Bearing type: Ceramic ball bearings
• Cooling: Water cooling, 4.6 L/min (0.25 MPa)
• Motor temperature sensor: KTY
• Vibration velocity: <0.8 mm/s
• Weight: 24 ± 1 kg
• Tool interface: Straight hole and screw thread Φ23-M22×1.5
