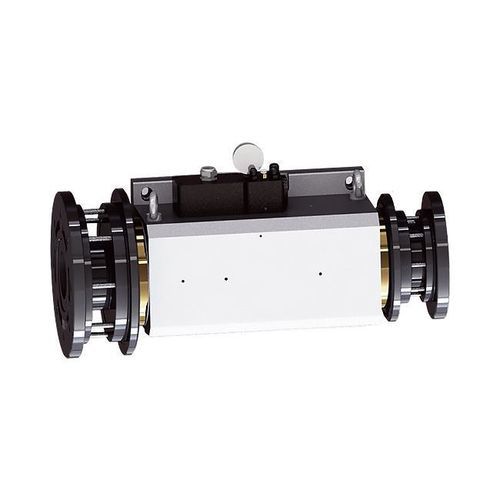

Grinding spindle DYFDM-170(100)30/22-XWS

motorizedhydrostaticISO

Overview
The DYFDM-170 is a hydrostatic headstock spindle designed for machine tool headstocks that require high continuous torque and tightly controlled radial motion. Its built-in synchronous motor provides 22 kW (S1) and 140 N·m continuous torque; the specified front-end radial runout supports precision workpiece rotation.

Key specifications

• Maximum speed: 3500 rpm
• Power output (S1 100%): 22 kW
• Output torque (S1 100%): 140 N·m
• Center height: 145 mm
• Front end radial runout: ≤0.0001 mm

Technical data
Model: DYFDM-170(100)30/22-XWS
Height of center (mm): 145
Lubricating oil type: ISO VG3
Oil supply pressure (MPa): 3.0-4.0
Axial static stiffness (N/μm): ≥350
Radial static stiffness (N/μm): ≥250
Front end radial runout (mm): ≤0.0001
Axial end axial movement (mm): ≤0.001
Rotation precision (mm): ≤0.0003
Drive type: Built-in motor drive
Rotation movement: Clockwise
Maximum speed (rpm): 3500
Max. Frequency (Hz): 233.3
Motor system: Synchronous motor
Rated voltage (V): 380
Power output S1 100% (kW): 22
Output torque S1 100% (N·m): 140
Rated current S1 100% (A): 41
Cooling system: Oil cooling (recommended)
Application area: Machine tool headstock
Net weight (kg): 395±1

Characteristics / Technical specifications

• Model: DYFDM-170(100)30/22-XWS
• Center height: 145 mm
• Maximum speed: 3500 rpm
• Power output: 22 kW (S1 100%)
• Output torque: 140 N·m (S1 100%)
• Rated current: 41 A
• Rated voltage: 380 V
• Motor system: Synchronous motor
• Drive type: Built-in motor drive
• Axial static stiffness: ≥350 N/μm
• Radial static stiffness: ≥250 N/μm
• Front end radial runout: ≤0.0001 mm
• Axial end axial movement: ≤0.001 mm
• Rotation precision: ≤0.0003 mm
• Oil supply pressure: 3.0-4.0 MPa
• Lubricating oil type: ISO VG3
• Cooling: Oil cooling (recommended)
• Application: Machine tool headstock
• Net weight: 395±1 kg
