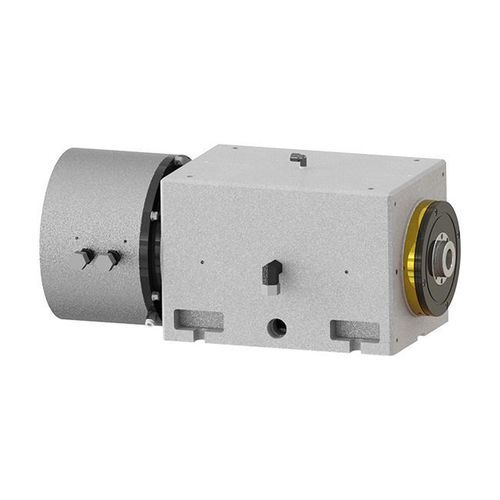

Grinding spindle DYFDM-125(080)15/5.5-XVM

hydrostaticISOoil-lubricated

Product overview
Designed for use as a machine-tool headstock rather than a high-speed wheel spindle, the DYFDM-125(080)15/5.5-XVM combines two-way rotation with a 220 V synchronous motor. Rated torque 41.4 N·m and hydrostatic support provide stable workpiece rotation up to 1,500 rpm.

Basic data
Diameter: Φ125 mm
Maximum speed: 1500 rpm

Technical details

• Model: DYFDM-125(080)15/5.5-XVM
• Center height (mm): 125
• Lubricating oil type: ISO VG5
• Oil supply pressure (MPa): 2.5–5.0
• Axial static stiffness (N/μm): ≥300
• Radial static stiffness (N/μm): ≥250
• Front end radial runout (mm): ≤0.0005
• Axial end movement (mm): ≤0.0005
• Rotation precision (mm): ≤0.0002
• Drive type: Rear motor drive
• Rotation: Two-way
• Maximum speed (rpm): 1500
• Max. frequency (Hz): 375
• Motor system: Synchronous motor
• Rated voltage (V): 220
• Power output S1 100% (kW): 6.5
• Output torque S1 100% (N·m): 41.4
• Rated current S1 100% (A): 18.4
• Cooling system: Oil cooling (recommended)
• Application: Machine-tool headstock
• Weight (kg): 223 ±10

Features / specifications

• Hydrostatic support for high rotational stability
• Synchronous rear-motor drive with bidirectional rotation
• High rotation precision ≤0.0002 mm and minimal runout
• Recommended oil cooling and ISO VG5 lubrication
• Suitable for heavy-duty headstock applications
