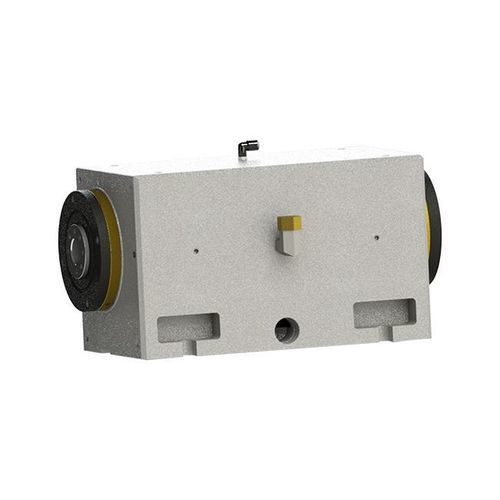

Grinding spindle DYFJM-125(065)15/5.5-X

motorizedhydrostaticISO

Product description
Unlike motor-driven grinding spindles, the DYFJM-125(065)15/5.5-X is a driven hydrostatic tailstock spindle engineered to provide reliable secondary support and high-precision alignment of workpieces on machine tools. It supports bidirectional rotation, features very low radial and axial runout, and is rated at 1300 rpm (maximum 1500 rpm). Installation diameter is 125 mm and journal diameter is Φ65 mm.

Overview
Diameter: Φ125 mm
Journal diameter: Φ65 mm
Rated speed: 1300 rpm
Maximum speed: 1500 rpm
Drive type: Driven shaft
Rotation: Bidirectional rotation
Application: Machine tool tailstock support
Weight: 125±5 kg

Technical data (summary)
Installation outside diameter (mm): 125
Journal diameter (mm): Φ65
Drive oil type: ISO VG5
Oil supply pressure (MPa): 2.5-5.0
Axial static stiffness (N/μm): ≥300
Radial static stiffness (N/μm): ≥250
Front end radial runout (mm): ≤0.0005
Axial end axial movement (mm): ≤0.0005
Rotation precision (mm): ≤0.0002
Drive type: Driven shaft
Rotation movement: Bidirectional rotation
Rated speed (rpm): 1300
Maximum speed (rpm): 1500
Application area: Machine tool tailstock support
Weight (kg): 125±5

Features / technical specifications

• Model: DYFJM-125(065)15/5.5-X (driven hydrostatic tailstock spindle)
• Installation outside diameter: 125 mm
• Journal diameter: Φ65 mm
• Drive oil type: ISO VG5
• Oil supply pressure: 2.5–5.0 MPa
• Axial static stiffness: ≥300 N/μm
• Radial static stiffness: ≥250 N/μm
• Front end radial runout: ≤0.0005 mm
• Axial end axial movement: ≤0.0005 mm
• Rotation precision: ≤0.0002 mm
• Drive type: Driven shaft
• Rotation movement: Bidirectional rotation
• Rated speed: 1300 rpm
• Maximum speed: 1500 rpm
• Application area: Machine tool tailstock support
• Weight: 125±5 kg
