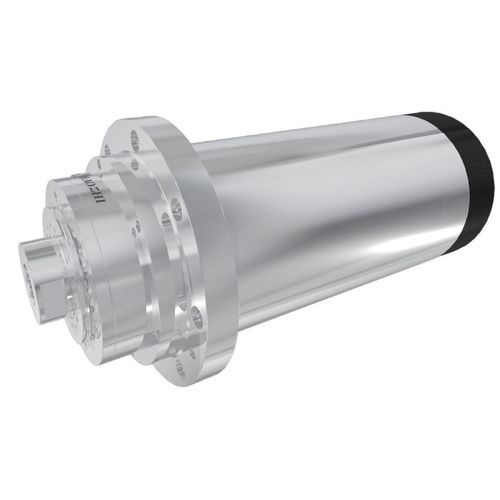

Grinding spindle DGZM-15024/22-DFWS

high-powermotorizedwater-cooled

Overview
At the larger end of internal grinding spindles, the DGZM-15024/22-DFWS prioritizes power and torque over maximum speed. The 150 mm body delivers 22 kW and 17.7 N·m at rated conditions for heavy grinding passes. Water cooling and ceramic ball bearings enable sustained operation in demanding internal-grinding applications.

Key data
Diameter: Φ150 mm
Maximum speed: 24,000 rpm
Rated speed: 12,000 rpm
Rated power (S1): 22 kW
Rated torque (S1): 17.7 N·m

Technical data
Model: DGZM-15024/22-DPNS
Maximum frequency: 800 Hz
Rated frequency: 400 Hz
Rated voltage: 380 V
Rated current: 41 A
Motor type: Asynchronous motor
Bearing type: Ceramic ball bearing
Cooling method: Water cooling (6–8 L/min at 0.25 MPa)
Motor temperature sensor: KTY
Vibration velocity: <0.8 mm/s
Weight: 42 ± 1 kg
Tool interface: Straight hole and screw thread Φ28-M27×2

Dimensions
Dimensions diagram available in the product documentation.

Technical specifications

• Product reference on page: DGZM-15024/22-DFWS
• Body diameter: 150 mm
• Rated power (S1): 22 kW
• Rated torque (S1): 17.7 N·m
• Maximum speed: 24,000 rpm
• Rated speed: 12,000 rpm
• Maximum frequency: 800 Hz
• Rated frequency: 400 Hz
• Rated voltage: 380 V
• Rated current: 41 A
• Motor: Asynchronous
• Bearings: Ceramic ball bearings
• Cooling: Water cooling (recommended flow 6–8 L/min at 0.25 MPa)
• Motor temperature sensor: KTY
• Vibration: <0.8 mm/s
• Weight: 42 ± 1 kg
• Tool interface: Straight hole and thread Φ28-M27×2
