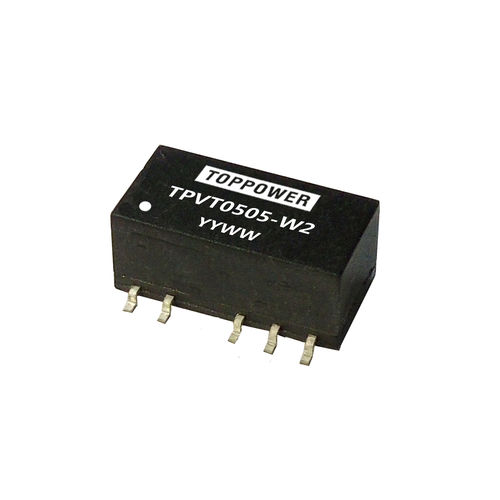

SMD DC/DC converter TPVT-W2 series
compactnon-stabilized

SMD DC/DC converter
SMD DC/DC converter
SMD DC/DC converter
Add to favorites
Compare this product


Characteristics

Configuration
SMD
Other characteristics
compact, non-stabilized
Power

0.25 W

Input voltage

3.3 V, 5 V, 12 V, 15 V

Output voltage

3.3 V, 5 V, 12 V, 15 V

Description

Product Features:Miniature surface mounted DC/DC Converters are an ideal and economical solution for many applications where noise reduction, voltage isolation, voltage conversion in distributed power systems is required. these converters are qualified for the higher temperatures requested by lead-free reflow solder processes, especially for automated SMD production lines. RoHS compliant、CE certificationEfficiency up to 82%Operating temperature:-40℃to 105℃ UL 94V-0 package materialInput voltage:3.3V,5V,12V,24VPlastic encapsulated Dual isolated outputOutput voltage:±5V,±9V,±12V,±15V / 3.3V,5V,9V,12V,15VPower density 1.37W/cm3 3KVDC isolation (1 minute)Custom solutions available/ Part Number TPVT0503-W2 TPVT0505-W2 TPVT0509-W2 TPVT0512-W2 TPVT0515-W2 TPVT1205-W2 TPVT1209-W2 TPVT1212-W2 TPVT1215-W2 TPVT0303A-W2 TPVT0305A-W2 TPVT0505A-W2 TPVT0509A-W2 TPVT0512A-W2 TPVT0515A-W2 TPVT1203A-W2 TPVT1205A-W2 TPVT1209A-W2 TPVT1212A-W2 TPVT1215A-W2 TPVT2405A-W2
