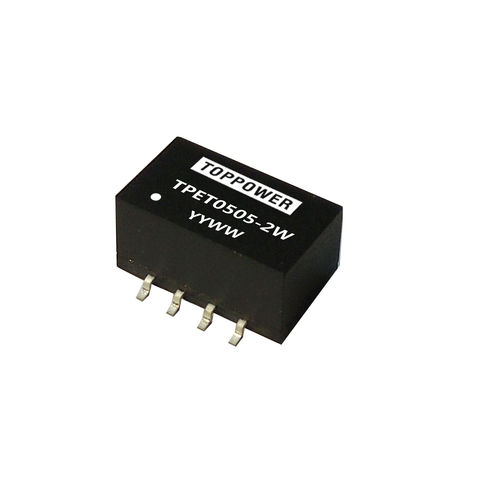

SMD DC/DC converter module TPET-2W series
encapsulatedunregulatedfor telecom applications

SMD DC/DC converter module
SMD DC/DC converter module
Add to favorites
Compare this product

Characteristics

Configuration
SMD, encapsulated
Electrical characteristics
unregulated
Applications
for telecom applications
Other characteristics
miniature, single-output
Power

2 W

Input voltage

3.3 V, 5 V, 9 V, 12 V, 15 V

Output voltage

3.3 V, 5 V, 9 V, 12 V, 15 V

Description

2W 3KVDC Isolated Single Output SMD DC/DC Converters Miniature surface mounted DC/DC Converters are an ideal and economical solution for many applications where noise reduction, voltage isolation, voltage conversion in distributed power systems is required. these converters are qualified for the higher temperatures requested by lead-free reflow solder processes, especially for automated SMD production lines. RoHS compliant、CE certificationEfficiency up to 79%Single isolated output 3KVDC isolationCustom solutions availablePower density 1.8W/cm3 UL 94V-0 package materialFootprint over pins 1.37cm2Operating temperature: -40℃to 105℃ Input voltage:5V,12V,15VOutput voltage:5V, 9V, 12V,15V/ Part NumberNominal Input VoltageOutput Voltage VV TPET0505-2W55 TPET0509-2W59 TPET0512-2W512 TPET0515-2W515 TPET1205-2W125 TPET1209-2W129 TPET1212-2W1212 TPET1215-2W1215 TPET1515-2W1515 Add suffix “P” for continuous short circuit protection, for example TPET0505P-2W. Add suffix “X” has not 5,10,12 pin, for example TPET0505X-2W
