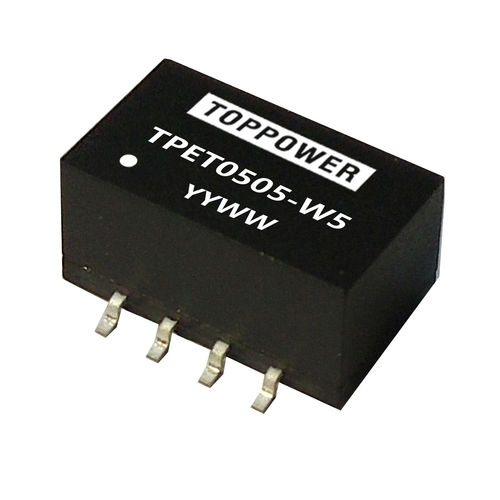

SMD DC/DC converter TPET-W5 series

SMD DC/DC converter
SMD DC/DC converter
SMD DC/DC converter
Add to favorites
Compare this product


Other characteristics
compact, non-stabilized

0.5 W

Input voltage

3.3 V, 5 V, 12 V, 15 V

Output voltage

5 V, 9 V, 12 V, 15 V


Product Features:Miniature surface mounted DC/DC Converters are an ideal and economical solution for many applications where noise reduction, voltage isolation, voltage conversion in distributed power systems is required. these converters are qualified for the higher temperatures requested by lead-free reflow solder processes, especially for automated SMD production lines. RoHS compliant、CE certificationEfficiency up to 78%Single isolated output 3KVDC isolationCustom solutions availablePower density 1.8W/cm3 UL 94V-0 package materialFootprint over pins 1.37cm2Operating temperature: -40℃to 105℃ Input voltage: 3.3V, 5V,12V,15V,24VOutput voltage:3.3V, 5V, 9V, 12V,15V/ Part Number TPET0303-W5 TPET0305-W5 TPET0309-W5 TPET0312-W5 TPET0315-W5 TPET0503-W5 TPET0505-W5 TPET0509-W5 TPET0512-W5 TPET0515-W5 TPET1203-W5 TPET1205-W5 TPET1209-W5 TPET1212-W5 TPET1215-W5 TPET1505-W5 TPET1515-W5 TPET2403-W5 TPET2405-W5 TPET2409-W5 TPET2412-W5 TPET2415-W5 Add suffix “P” for continuous short circuit protection, for example TPET0505P-W5. Add suffix “X” has not 5,10,12 pin, for example TPET0505X-W5.
